419 Loader Specifications on 790 Tractor1

W05238

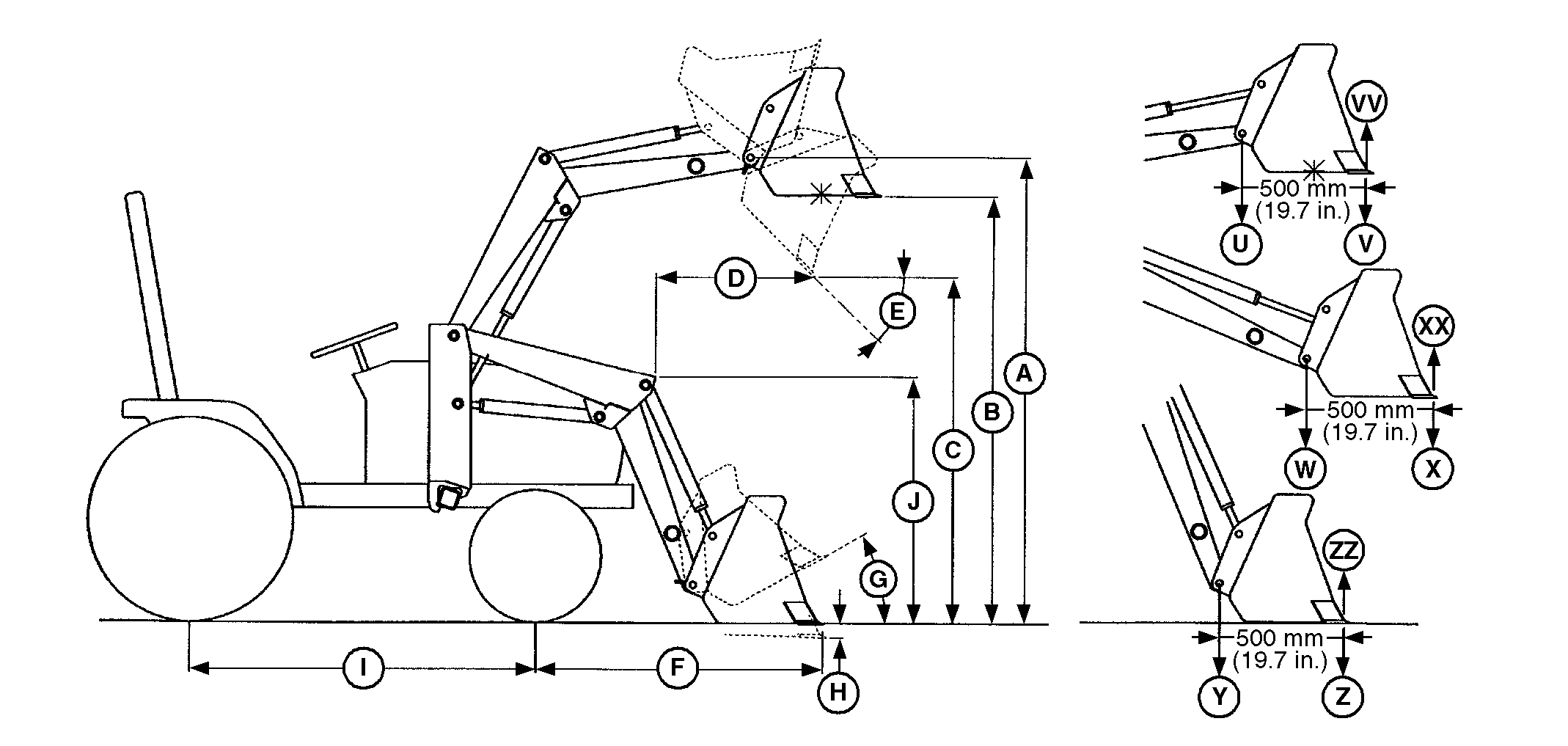

Dimensions are in compliance with ASAE standard S301.3.

1(Specifications and design subject to change without notice.)

OUO6038,0001575 -19-15MAR02-1/2


Tractor Model 790
Front Tires 7.00-14 6PR R1
Rear Tires 11.2-24 4PR R1
Wheelbase (I) 1550 mm (61 in.)
Material Bucket
Width 1350 mm (53 in.)
Length 618 mm (24.3 in.)
Mass 77 kg (169 lb)
Hydraulic System
Rated Flow 22 L/Min (5.8 gal/min)
Maximum Pressure 14 100 kPa (141 bar) (2045 psi)
Maximum Lift Height
To Pivot Pin (A) 2232 mm (88 in.)
Clearance
Bucket Level (B) 2070 mm (81.5 in.)
Bucket Dumped (C) 1685 mm (66.3 in.)
Overall Length (I+F) 2860 mm (112.6 in.)
Digging Depth (H) 64 mm (2.5 in.)
Reach
At Max Lift Height (D) 908 mm (39.7 in.)
Bucket on Ground (F) 1308 mm (51.5 in.)
Angles
Max Dump (E) 45°
Max Dump at Ground 116°
Max Rollback (G) 23.4°
Rollback at Full Height (SAE) 99°
Overall Height
In Carry Position (J) 1426 mm (56 in.)
Lift Capacity
To Max Height at Pivot Point (U) 276 kg (610 lb)
To Max Height (V) 239 kg (527 lb)
To 1.5 m (59 in.) at Pivot Point (W) 376 kg (829 lb)
To 1.5 m (59 in.) (X) 331 kg (730 lb)
With Forklift to Max Height (U) 209 kg (460 lb)
Breakout Force
At Pivot Point (Y) 7189 N (1616 lb force)
500 mm (19.7 in.) Forward of Pivot Point (Z) 6131 N (1378 lb force)
Bucket Rollback Force
At Max Height (VV) 5700 N (1281 lb force)
At 1.5 m (59 in.) Lift Height (XX) 6200 N (1394 lb force)
At Ground Level Line (ZZ) 5000 N (1124 lb force)
