Preparing to Remove Loader

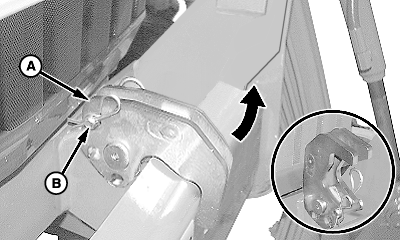

1. Remove spring locking pin and drilled pin (B), and raise latch plate retainer (A). Reinstall drilled pin and spring locking pin in bottom hole of latch plate retainer.


A-Latch Plate Retainer
B-Drilled Pin

W05147

OUO6038,0001584 -19-19MAR02-1/2

causym CAUTION: To help prevent personal injury caused falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a forklift. Use of a materials bucket is recommended.

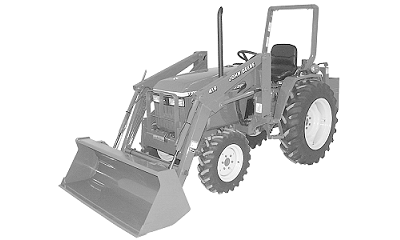

2. Be sure loader is equipped with materials bucket.

3. Start tractor engine.

4. Level bucket and lower to ground.

5. Retract lift cylinders and relieve weight from front tires.

W14000
W05153

OUO6038,0001584 -19-19MAR02-2/2
