Removing Loader

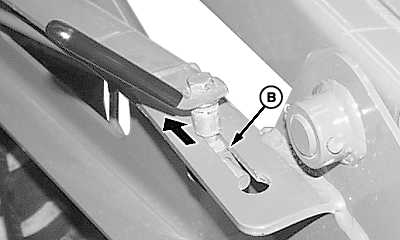

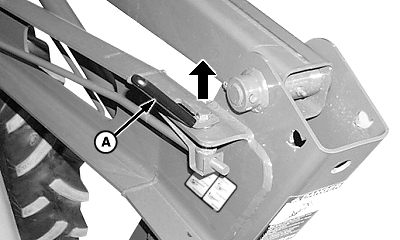

1. Lift up on latch (A) and push forward all the way into slot (B).

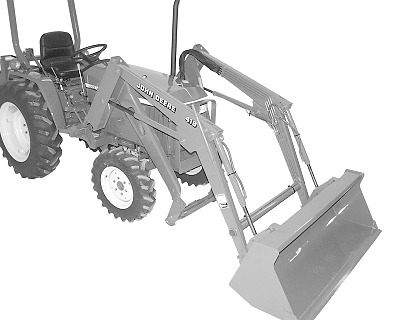

2. Extend lift cylinders. Masts will lift out of rear frames.

3. Raise masts high enough to clear front tires.

4. Engage tractor parking brake and/or place transmission in "Park".

5. Shut off tractor engine and remove key.


A-Latch
B-Slot

W05154
W05155
W05156

OUO6038,0001585 -19-19MAR02-1/5

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system. Move multi-function control lever back and forth and side-to-side several times.

6. Move multi-function control lever back and forth several times to relieve system pressure.

X9811

OUO6038,0001585 -19-19MAR02-2/5

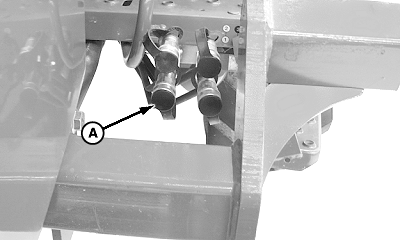

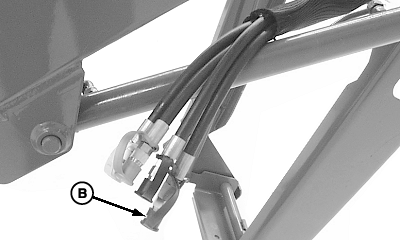

7. Disconnect hoses at couplers and install dust plugs (A) and caps (B).


A-Dust Plug (4 used)
B-Dust Cap (4 used)

W05157
W05158

OUO6038,0001585 -19-19MAR02-3/5

IMPORTANT: To avoid hose damage, be sure hoses do not catch on tractor when moving away from loader.

8. Store hoses on lift cylinder. DO NOT lay them on the ground.

9. Start tractor engine.

10. Disengage tractor parking brake and/or place transmission in reverse and slowly move away from loader.

W05159

OUO6038,0001585 -19-19MAR02-4/5

11. Remove ballast box. (See REMOVING BALLAST BOX in this section.)


A-Hitch Control Lever

W05199

OUO6038,0001585 -19-19MAR02-5/5
