Attaching Loader

1. Drive tractor slowly, straight into loader.

2. Align masts with rear frames.

3. Engage tractor parking brake and/or place transmission in "Park".

4. Shut off tractor engine and remove key.

W05156

OUO6038,0001587 -19-19MAR02-1/8

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system. Move multi-function control lever back and forth and side-to-side several times.

5. Relieve system pressure.

X9811

OUO6038,0001587 -19-19MAR02-2/8

6. Connect colored couplers on hoses matching numbers and/or colors on decal by coupler plate.

Key Dust Cap Color Hydraulic Function/Coupler Port
A Silver Bucket Cylinder-Head End (Port 2)
B Yellow Bucket Cylinder-Rod End (Port 1)
C Green Lift Cylinder-Head End (Port 4)
D Black Lift Cylinder-Rod End (Port 3)


W05161

Left-Hand Side

OUO6038,0001587 -19-19MAR02-3/8

NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line when doing the following procedures.

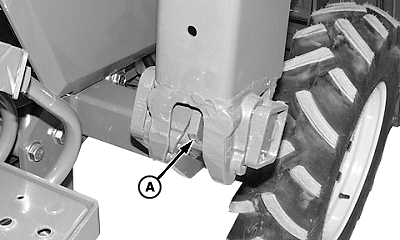

7. Slowly retract lift cylinders. Masts will lower into mounting frames.

8. Be sure notches in bottom of masts align with tab (A) on each mounting frame.


A-Tab

W05162

Right-Hand Side Shown

OUO6038,0001587 -19-19MAR02-4/8

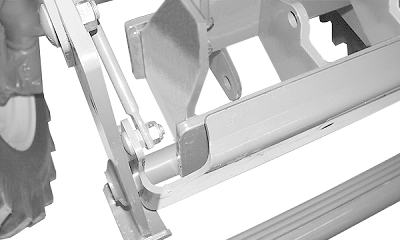

9. Fully retract lift cylinders raising front wheels slightly off ground.

10. Parking stand will raise into front weight bracket.

11. Check to be sure that lock plate has risen fully and is tight against weight bracket.

W05166

OUO6038,0001587 -19-19MAR02-5/8

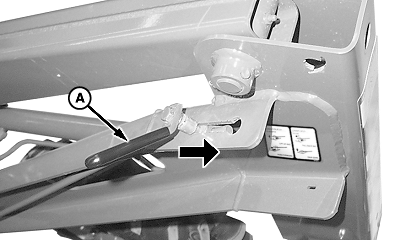

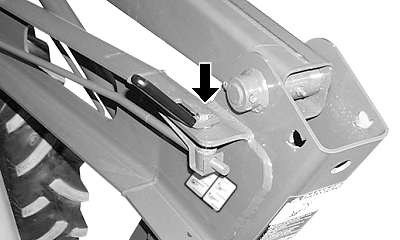

12. Pull rearward on latch handle (A). Handle will drop down in hole.

NOTE: If handle does not drop into hole freely, adjustment of latch rod may be necessary. (See CHECKING AND ADJUSTING LATCH PLATE AND LOCKING LEVER in Service section.)


A-Latch

W05167
W05168

OUO6038,0001587 -19-19MAR02-6/8

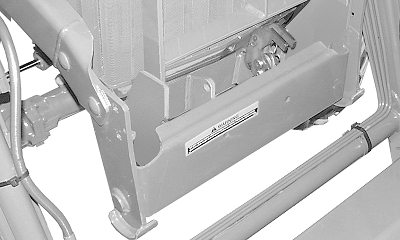

13. Pulling back and latch handle dropping down, will lock plate over front weight bracket.

IMPORTANT: To help prevent damage to loader and/or tractor, be sure lock plate is fully engaged, this plate holds front of loader onto tractor.

14. Check to be sure lock plate is "FULLY" engaged.

15. If lock plate cannot be engaged, see Service section for adjustments.

16. Engage tractor parking brake and/or place transmission in "Park".

17. Shut off tractor engine and remove key.

W05169

OUO6038,0001587 -19-19MAR02-7/8

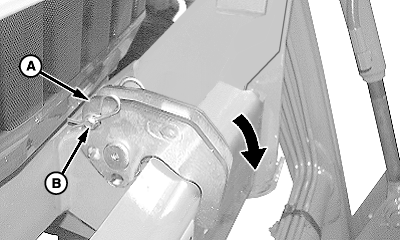

18. Lower latch plate retainer (A) as shown. Fasten with pin (B) and spring locking pin.


A-Latch Plate Retainer
B-Drilled Pin

W05170

OUO6038,0001587 -19-19MAR02-8/8
