Leveling in Reverse

IMPORTANT: Back blading with the bucket positioned greater than 45° may damage the bucket cutting edge and/or loader linkage.

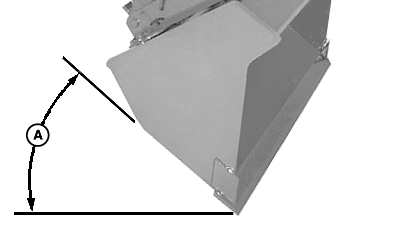

Position bucket between 30° and 45° from horizontal (A) and reverse slowly.

When possible, use "FLOAT" to reduce down pressure on bucket.

OUO6038,0001591 -19-19MAR02-1/1
