Attaching and Detaching Bucket, Forklift, or Blade

NOTE: Procedure is the same for all attachments. Bucket attachment shown.

1. Roll bucket back slightly and raise boom approximately 460 mm (18 in.) above ground level.

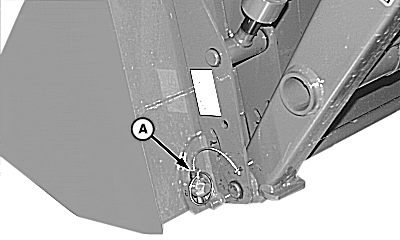

2. Remove pin (A) from each side of attachment.

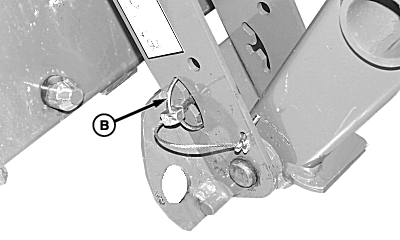

3. Store pins in storage position (B).

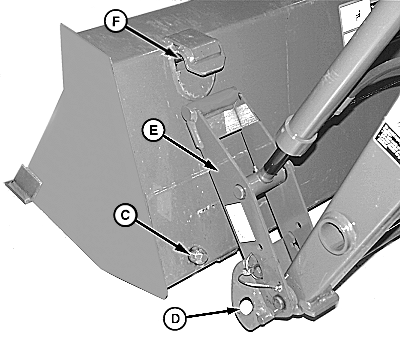

4. Extend bucket cylinders until pin (C) releases from strap (D) on each side of attachment.

5. Lower loader boom and reverse away from attachment. Carrier (E) will release from hook (F) on each side of attachment.

6. To attach attachment, reverse the above steps.


A-Pin
B-Storage Position
C-Bucket Pin
D-Strap
E-Carrier
F-Hook
