Operating Forklift

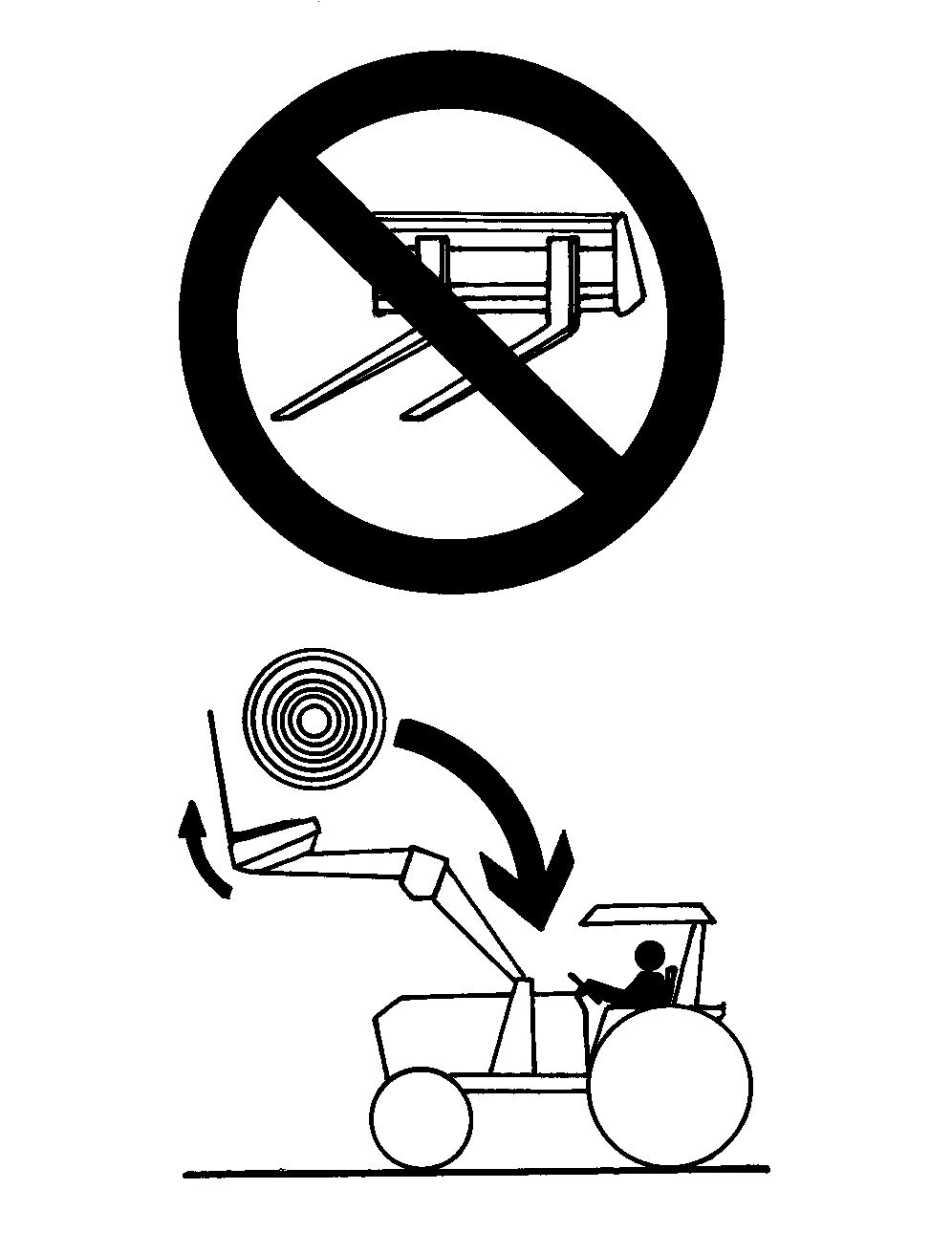

causym CAUTION: To help prevent bodily injury or death from a bale falling on the operator, do not handle round bales with the frame equipped with forklift tines.

To help prevent bodily injury or death from a falling pallet box, bin, crate or hamper, adjust backstops to highest position when handling stacks. Do not handle stacked pallet boxes if backstop does not contact top pallet box.

Backstops can be positioned in high or low position. (Measured from top of tine to top of stop.)

  • Low-700 mm (27.5 in.)
  • High-888 mm (35 in.)

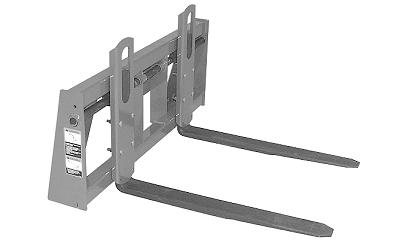

Forklift Dimensions
Tine Width 102 mm (4 in.)
Tine Length 1000 mm (39 in.)
Maximum Spacing (Outside Tines) 1342 mm (53 in.)
Minimum Spacing 305 mm (12 in.)
