OMW48833: 419 Loader, Block File: OUO6038_00015A6_19

Tighten Mounting Frame Hardware

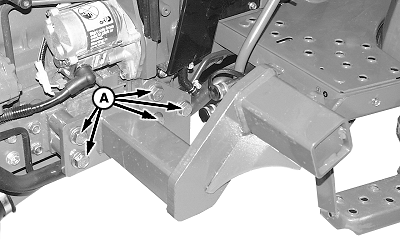

Tighten M16 hardware (A) to specifications.

Specification

Hardware -Torque

225 N·m

(166 lb-ft)

A-Hardware, M16

OUO6038,00015A6 -19-19MAR02-1/2

Check Hood Guard Mounting Hardware

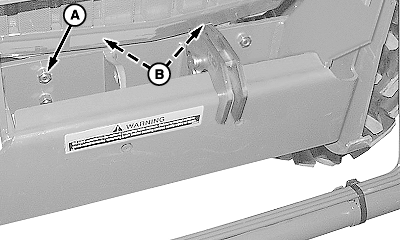

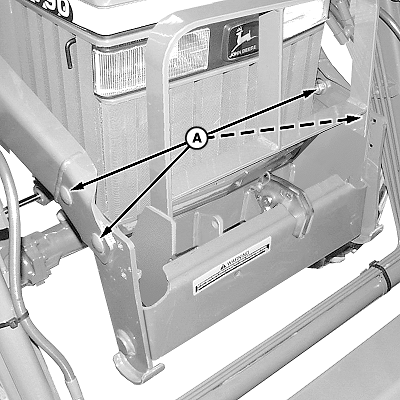

Tighten M12 hardware (A and B) to specification.

Specification

Cap Screws, Lock Washers, and Nuts -Torque

140 N·m

(105 lb-ft)

A-Cap Screw, Lock Washer, and Nut, M12 x 35 (4 each used)
B-Cap Screws, Lock Washers, and Nuts, M12 x 35 (side frames)
