Identifying Hose Connections

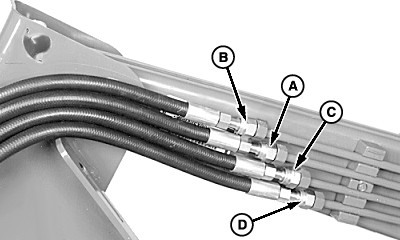

Identify hoses by installing color-coded dust caps on end of hoses.

Key Dust Cap Color Hydraulic Function/Coupler Port
A Silver Bucket Cylinder-Head End (Port 2)
B Yellow Bucket Cylinder-Rod End (Port 1)
C Green Lift Cylinder-Head End (Port 4)
D Black Lift Cylinder-Rod End (Port 3)

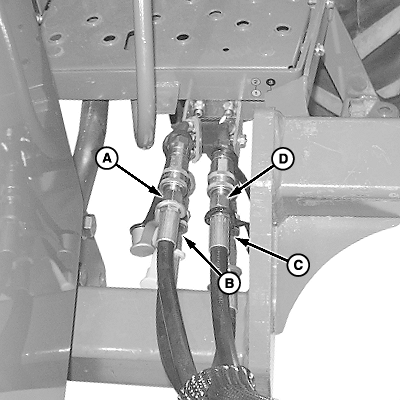

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

W05193
W05161

OUO6038,00015AE -19-19MAR02-1/1
