Checking and Adjusting Latch Plate and Locking Lever

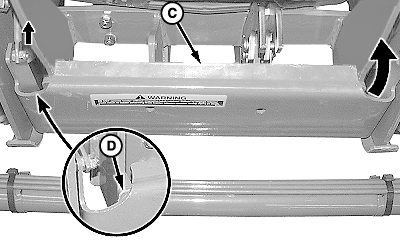

1. Lower loader to ground and apply enough downward force to relieve weight of tractor from front tires.

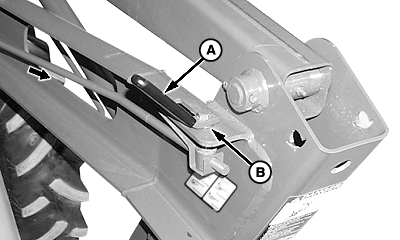

2. Move latch lever (A) back to rotate latch plate (C) over weight bracket (D). It should rotate freely.

3. Latch lever must be in hole (B) and free to move up and down.

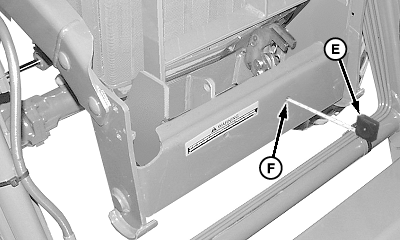

4. Using tape measure (E) through hole (F), maximum distance from front surface of weight bracket to front surface of latch should be within specification.

Specification

Weight Bracket-to-Front Surface of Latch -Distance (Maximum) 13 mm (0.5 in.)


A-Latch Lever
B-Lever Hole
C-Latch Plate
D-Weight Bracket
E-Tape Measure
F-Hole

W05194
W05195
W05196

OUO6038,00015AF -19-19MAR02-1/2

IMPORTANT: Lever (A) MUST NOT be tight in hole. For correct operation, pin (C) must be loose enough to allow spring to keep lever in locked position.

5. If lever is tight in hole or is still in slot with latch plate closed, adjust latch rod as follows:

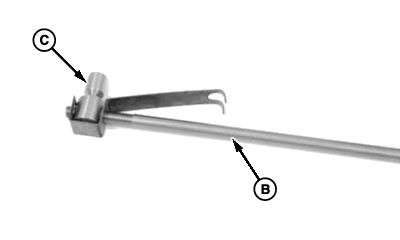

a. Remove cap screw to disconnect lever (A) from rod (B).

b. Rotate pin (C) (in or out) on rod until pin fits freely in hole and dimension at latch and weight bracket is within specification.

Specification

Weight Bracket-to-Front Surface of Latch -Distance 13 mm (0.5 in.)

c. Apply thread lock and sealer (high strength) to threads of cap screw.

d. Attach lever to rod in reverse order as disassembled.
