Storing Loader

causym CAUTION: Stored attachments such as loaders can fall and cause serious injury or death. Securely store attachments and implements to prevent falling. Keep playing children and bystanders away from storage area.

1. Remove loader. (See Detaching Loader section.)

2. Clean loader thoroughly. Dirt attracts moisture which causes rust.

3. Paint where required.

4. Replace missing or damaged parts including hoses, hardware and decals.

5. If possible, store loader in a dry place.

6. Coat exposed cylinder rods with moly grease to prevent rust.

7. Be sure dust caps are on hose ends.

8. Store hoses on lift cylinder, NOT on the ground.

9. Lubricate complete machine. (See Lubrication and Maintenance section.)

W14000

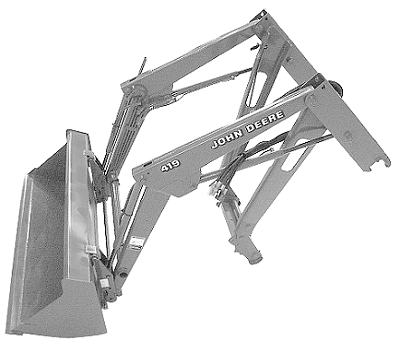

W05159

OUO6038,00015B0 -19-19MAR02-1/1
