Teeth for Heavy Duty Bucket

NOTE: Digging teeth cannot be used with the bolt-on wear edge attachment.

Use teeth for digging in hard ground.

OUMX005,000142D -19-20SEP01-1/2

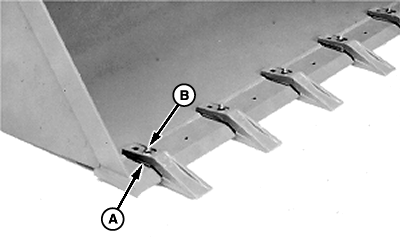

Install each tooth using spacer (A), and M12 x 40 cap screw and flange nut (B).

A-Spacer
B-Cap Screw and Flange Nut, M12 x 40

OUMX005,000142D -19-20SEP01-2/2
