Manure Fork Frame

For handling parked pen manure.

  • Available in 1550 mm (61 in.) (721 only) and 1850 mm (73 in.) widths.
  • Effective tine length: 570 mm (22.5 in.)
  • Side tines included for extra capacity
  • Bottom tines are alloy spring steel for high strength and long life
Assembling Manure Fork Frame

1. Insert two short tines through sides of frame at locations shown. Rotate tines so bevels are facing UP. Fasten to frame using pins and cotter pins.

2. Insert long tines through bottom of frame, as shown. Fasten with M22 nut (cone shaped end toward frame). Tighten to specifications.

Specification

Tine-to-Frame Nut -Torque 650 N·m (480 lb-ft)

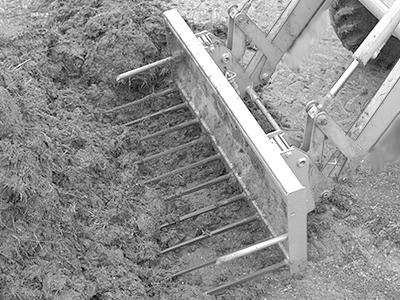

W05453
