Tines for Materials Buckets

Use tines to handle manure or silage. For handling round bales, use tines to support the bale and a grapple to clamp the bale.

Tines extend out approximately 305 mm (12 in.) from bucket cutting edge.

Bucket Width Number of Tines
1550 mm (61 in.) 7
1850 mm (73 in.) 9
2150 mm (85 in.) 11
2450 mm (96 in.) 13


W00363

OUMX005,000150B -19-24JUN02-1/2

Installing Bucket Tines

causym CAUTION: Help prevent personal injury from accidental lowering of bucket. Place safety stands under bucket when installing tines.

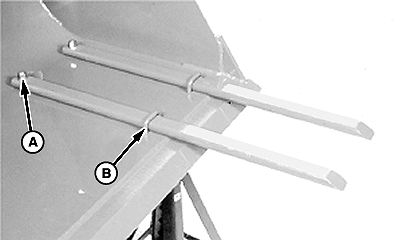

1. Attach rear of tines using M12 x 40 cap screws (head down), flat washers and nuts (A).

2. Attach front of tines using U-bolts, flat washers, and M10 nuts (B).


A-Cap Screw, Flat Washer and Nut, M12 x 40
B-U-Bolt, Flat Washers and Nuts, M10

TS226
W00230

OUMX005,000150B -19-24JUN02-2/2
