Round Bale Fork

Use to handle round bales up to a weight of 900 kg (2000 lb).

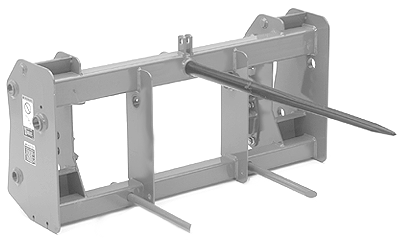

Assembling Bale Fork

1. Insert two short tines through bottom of frame at locations shown. Rotate tines so bevels are facing toward each other. Fasten to frame using pins and cotter pins.

2. Insert long tine through top of frame, as shown. Fasten with 5/8 x 3-3/4 in. cap screw, lock washer and nut.
