First 10 and Every 50 Hours

Tighten Mounting Frame Hardware-6000 and 7000 Series Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten seven M20 x 55 flange head cap screws (A) on each frame to specification.

Specification

Mounting Frame-to-Tractor Hardware -Torque 620 N·m (457 lb-ft)

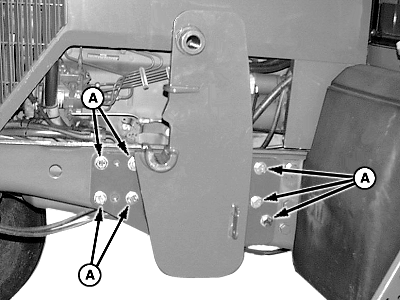

W05433

Left-Hand Side Shown


A-Flange Head Cap Screws, M20 x 55

OUMX005,000151B -19-01JUL02-1/3

Tighten Mounting Frame Hardware-30, 40, 50 and 55 Series Utility Tractors (721 Loader)

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten mounting frame hardware to specifications.

Location Torque
N·m (lb-ft)
A 235 (173)
B 210 (155)
C 210 (155)
D (with ROLL-GARD)
(without ROLL-GARD)		 407 (300)
365 (270)
E 100 (75)




A-Flange Head Cap Screw, 5/8 x 3-1/2 in.
B-Cap Screws
C-Cap Screws, 5/8 x 2-1/2 in.
D-Cap Screws
E-U-bolt Nuts

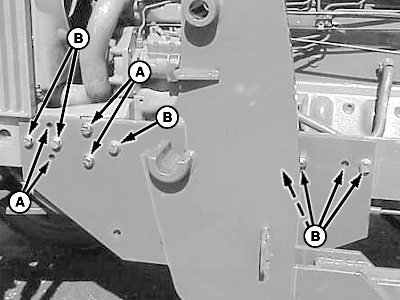

W05402
W00755
W00756

OUMX005,000151B -19-01JUL02-2/3

Tighten Mounting Frame Hardware-20, 30, 40, 50 and 55 Row Crop Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten all hardware to specifications.

Location Torque
N·m (lb-ft)
A 353 (260)
B 315 (232)
C 315 (232)
D 315 (232)


W00758

Front Cross Tie

W00760

Lower Tie Bar

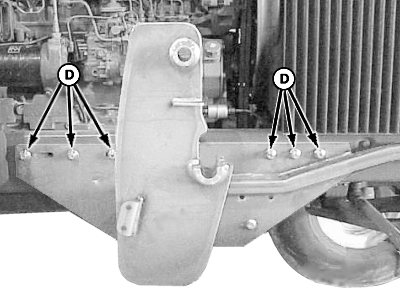

W05406

Side Frame
