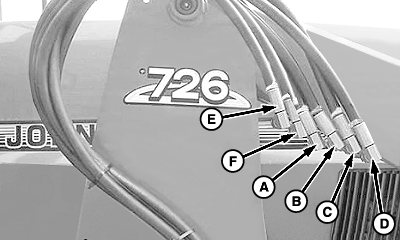

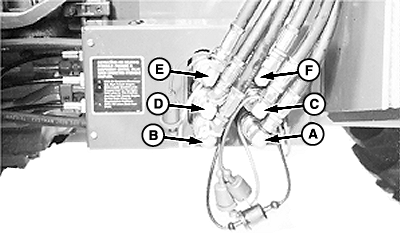

Identifying Hose Connections-Loader to Mid-Mount Valve (20, 30, 40, 50, and 55 Series Tractor)

NOTE: Connections (A-D) are the same for two-spool valve. Three-spool valve shown.

  Hose Tie Band Color Hydraulic Function
A Yellow Bucket Cylinder-Head End
B Black Bucket Cylinder-Rod End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End
E Orange Attachment Cylinder-Head End
F Green Attachment Cylinder-Rod End
