Identifying Hose Connections-Multi-Coupler (7000 Series, 6605, 6615 and 6715 Tractors)
| |
Dust Plug/Cap Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |
| E |
Orange |
Attachment Cylinder-Head End |
| F |
Green |
Attachment Cylinder-Rod End |
|

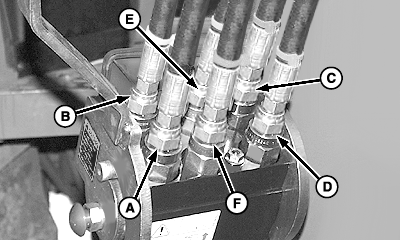

Three-Function Shown
|
|
|
OUMX005,0001536 -19-12JUL02-1/1
|
|
