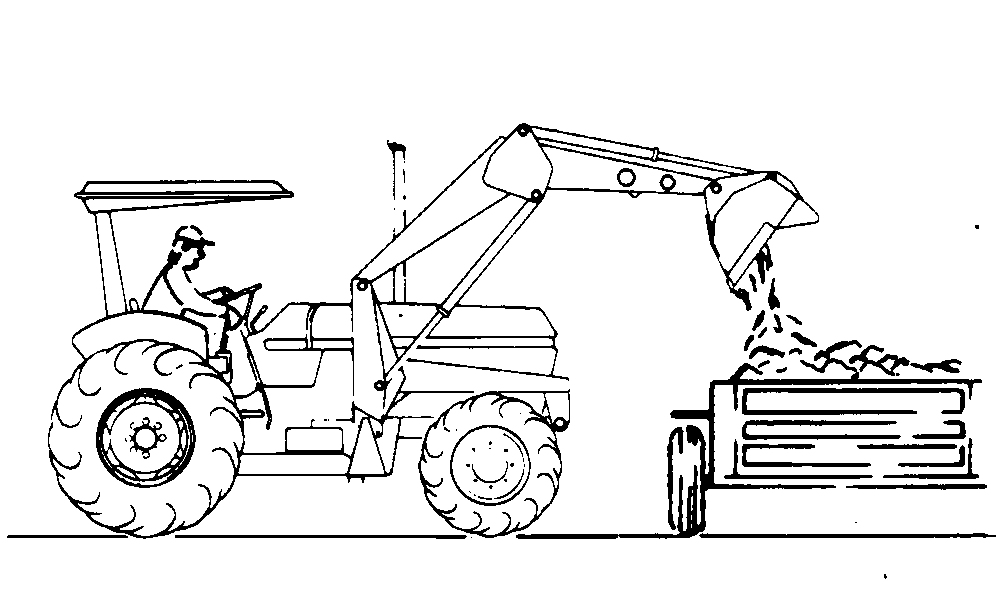

Dumping Bucket

IMPORTANT: 50 and 55 Series Tractors with independent loader valve; Do not attempt to use fast dump position. This will cause bucket to stop.

Loaders operated with multi-function control lever have a FAST DUMP feature. (6000 and 7000 Series Tractors must be equipped with a special "Bucket" valve.)

To dump the bucket, move the control lever to the right-hand side. Slightly extra effort is required to move lever beyond DUMP to FAST DUMP.

Bucket cylinder force is reduced in FAST DUMP position. Use it only for dumping materials.

OUMX005,0001538 -19-15JUL02-1/1
