Attaching the Bucket or Attachment

NOTE: Pins/handles on bucket or attachment DO NOT need to be in the UP position.

1. Extend bucket cylinders to angle loader attaching brackets forward.

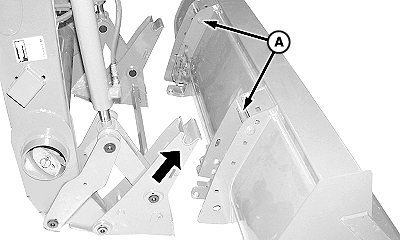

2. Align tops of brackets with pins (A).

3. Raise loader until brackets engage pins, then roll back bucket/attachment quickly.


A-Pins

W05353

OUMX005,0001557 -19-12SEP02-1/4

4. Raise loader high enough to check that pins (A) have fully dropped.

If latch mechanism is not working properly, clean latch parts and check adjustment. (See ADJUSTING QUIK-CHANGE LATCH PLATES in Service section.)


A-Pin (1 each side)

W05352

OUMX005,0001557 -19-12SEP02-2/4

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Help prevent personal injury caused by unexpected loader movement. Hose connections must be correct or attachment will not respond as expected when control lever is moved.

IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the hydraulic lines:

  • (B) Attachment Cylinder-Rod End (Green)

  • (C) Attachment Cylinder-Head End (Orange)

5. If equipped with hydraulic operated attachment (i.e. Grapple); Connect hydraulic hoses as follows:

a. Turn key to ON position. Do not start tractor engine.

b. Press switch on multi-function control lever several times.

c. Turn key to OFF position.

d. Push and hold collar (A) on female coupler.

X9811
W05359


A-Collars
B-Attachment Cylinder-Rod End (Green)
C-Attachment Cylinder-Head End (Orange)

OUMX005,0001557 -19-12SEP02-3/4

e. Insert hydraulic hose with male end into coupler.

f. Release collar on female coupler.

g. Connect colored cap and plug together.

h. Repeat for remaining hydraulic hose connection.
