Round Bale/Silage Grapple

causym CAUTION: DO NOT handle bales that exceed bale weight of 900 kg (2000 lb).

NOTE: Materials bucket produced before July 18, 2002 will need to be modified before installing grapple. (See MODIFYING MATERIALS BUCKET in this section.)

Use the round bale/silage grapple to handle loose or chopped forage, silage or round bales.

OUMX005,000155A -19-12SEP02-1/3

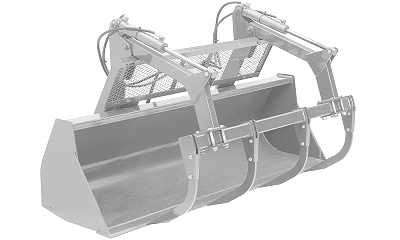

Four-Tine Round Bale/Silage Grapple

NOTE: Four-Tine Grapple is not recommended for use with high volume materials buckets.

W05072

OUMX005,000155A -19-12SEP02-2/3

Five-Tine Round Bale/Silage Grapple

NOTE: Five-Tine Grapple is not recommended for use with high volume materials bucket and buckets with overall width less than 2450 mm (96 in.).

A grille (not shown) is also available to aid in containing loose or chopped forage material. Grille attaches to front surface of backguard tubes.

W05452

OUMX005,000155A -19-12SEP02-3/3
