Identifying Hose Connections-Loader to Valves at Rear of Tractor (7000 Series, 6605, 6615 and 6715 Tractors)
|
|
Three-Function Shown
|

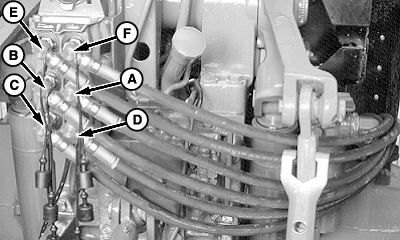

7000, 7000 TEN Series Tractor (SCV)
|

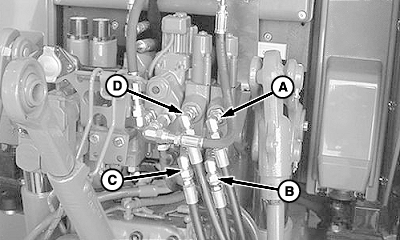

7020 Series Tractors (Loader Control Valve)
|

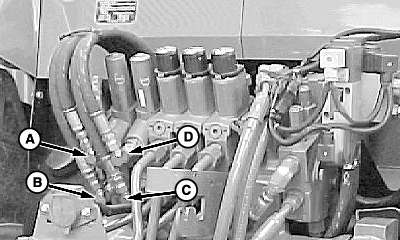

7000, 7000 TEN Series Tractors (Loader Control Valve)
|
|
NOTE:
Hoses are identified by color-coded tie bands installed on ends near fittings. Colors identify hose function.
| |
Dust Plug/Cap Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |
| E |
Orange |
Attachment Cylinder-Head End |
| F |
Green |
Attachment Cylinder-Rod End |
|

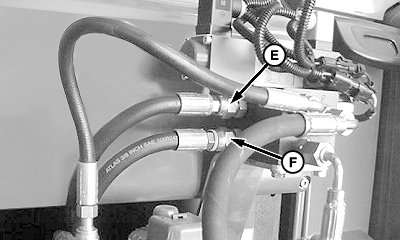

7000 Series, 6615, 6715 Tractors Rear Mounted Valve (Third-Function)
|
|
|
OUMX005,000155B -19-12SEP02-1/1
|
|
