Servicing Tractor Air Intake Filter and/or Radiator

causym CAUTION: Help prevent bodily injury from accidental lowering of loader. Do not service air filter with loader elevated and unsupported. Engage parking brake and/or place transmission in "PARK", lower loader to ground or on safety stands, shut off tractor engine, relieve hydraulic pressure and remove key.

Normally, access to filter can be made with bucket flat on ground.

However, due to tractor size and tire variations, it may be necessary to install parking stand/boom service locks (B) as follows:

1. Remove boom service locks (parking stands) from storage tube.

2. Raise loader until bucket/attachment is approximately 2.75 m (9 ft) off the ground.

3. Shut off tractor engine and remove key.

4. Insert boom service locks (B) in openings in loader masts.

IMPORTANT: Do not use hydraulic pressure to force boom against service locks. Damage to loader will result.

5. Lower loader until boom service locks rest against stops (A).

W00278
W05410

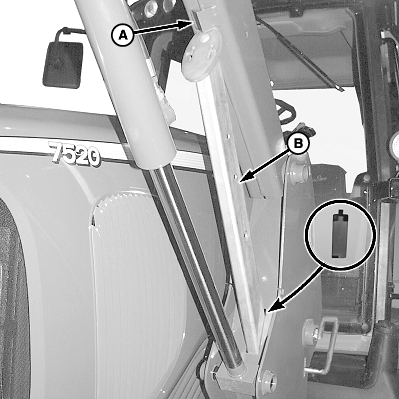

A-Stop (1 each side)
B-Parking Stand/Boom Service Lock (1 each side)
