Identifying Hose Connections-Loader to Mid-Mount Couplers and/or Valve (7000 Series, 6605, 6615 and 6715 Tractors)

NOTE: Mid-mount valve is on 7020 Series, 6605, 6615 and 6715 tractors only.

Hoses are identified by color-coded tie bands installed on ends near fittings. Colors identify hose function.

  Dust Plug/Cap Color Hydraulic Function
A Yellow Bucket Cylinder-Head End
B Black Bucket Cylinder-Rod End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End
E Orange Attachment Cylinder-Head End
F Green Attachment Cylinder-Rod End


W05411

Three-Function Shown

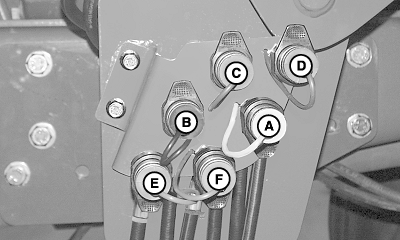

W05509

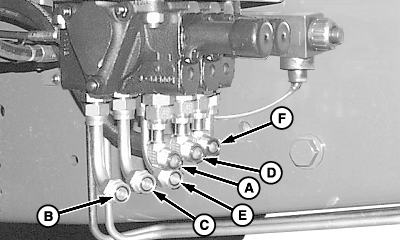

W05678

Mid-Mount Valve, ICV (If Equipped)

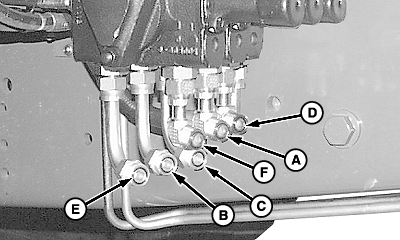

W05379

Mid-Mount Valve, E-ICV (If Equipped)

OUMX005,0001564 -19-16SEP02-1/1
