Locking Out Multi-Function Control Lever-6000 and 7000 Series Tractors

Multi-Function Control Lever (A) can be locked out to prevent unintentional movement. Turn ring (C) to locked position.

Locking collar (B) can be used to secure the lever in one of two positions. If the lever is not required, move ring (C) to locked position, and slacken locking collar (B). Swing lever to the right and tighten locking collar.

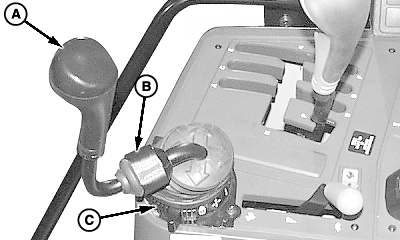

A-Multi-Function Control Lever
B-Locking Collar
C-Ring

OUO6038,000149A -19-26SEP01-1/1
