Lubricating and Maintaining Loader Safely
 CAUTION:

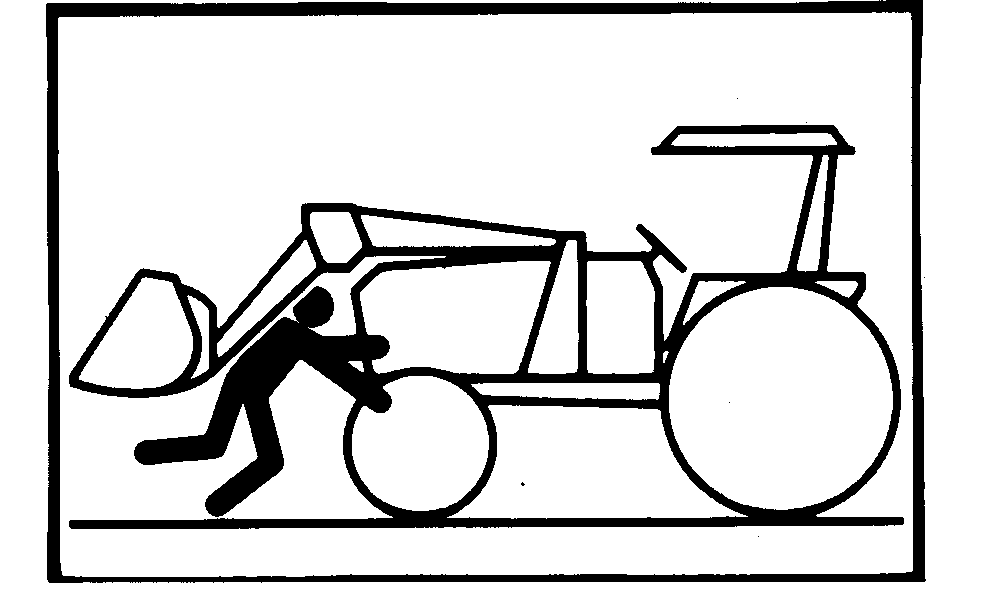

Help prevent bodily injury from accidental lowering of loader. Before lubricating or servicing the loader, perform the following:
1.
Engage parking brake or place transmission in "PARK".
2.
Lower loader to ground.
3.

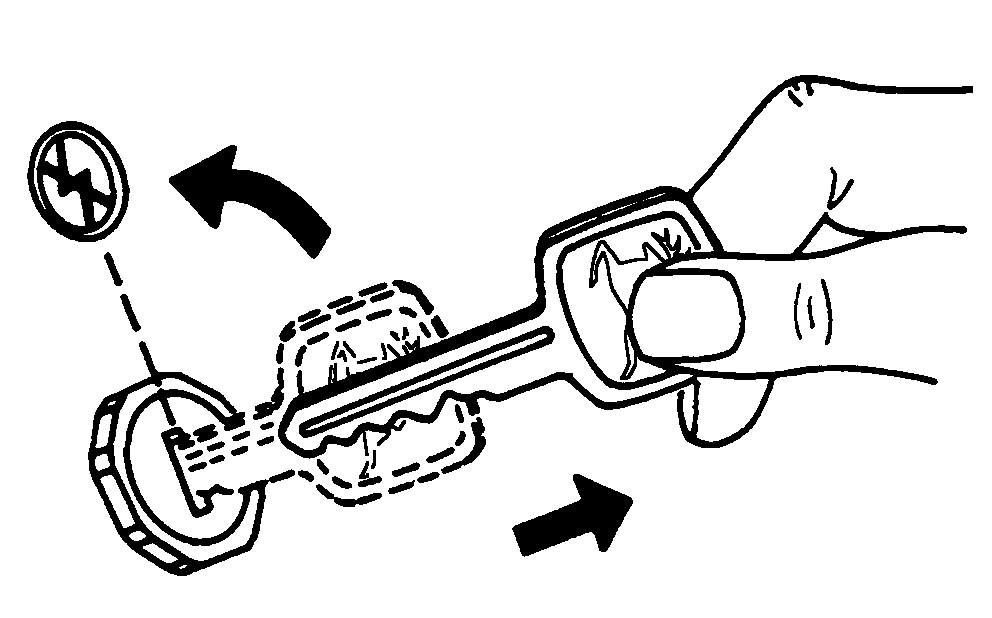

Shut off engine, and remove key.
4.
Relieve pressure in hydraulic system. Move control levers back and forth and side-to-side (if applicable) several times.
5.
If equipped with an electrohydraulic valve/third-function (attachment, such as grapple);
a.
Turn key to ON position. Do not start tractor engine.
b.
Press switch on multi-function control lever several times.
c.
Turn key to OFF position.
|
