Changing Valve Detent Selector-Loader without Multi-Function Control Lever (6000 and 7000 Series Tractors)

CAUTION: Help prevent personal injury or death caused by objects falling on the operator. Selective control valves have an automatic cylinder extend position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the operator.

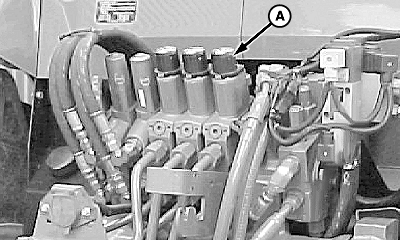

Turn detent selector knob (A) to "loader" position.

Adjust valves for fastest rate of operation. (See your tractor Operator's Manual.)

A-Selector Knob

OUO6038,00014FA -19-01OCT01-1/1
