Telescoping Boom

causym CAUTION: To help prevent tractor/loader instability, never exceed the capacity of the tractor/loader used with the boom. The boom must be kept in horizontal working position when operating.

The maximum lift capacity of the boom is 1361 kg (3000 lb) fully retracted and 726 kg (1600 lb) fully extended.

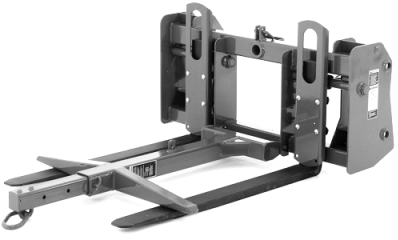

Use the telescoping boom as lifting device. It fits only the forklift attachment.

W03308

OUO6038,0001500 -19-03OCT01-1/2

Installing Telescoping Boom on Forklift

1. Set forklift tines to narrowest position.

2. Attach boom to forklift frame using two pins and spring locking pins (A).

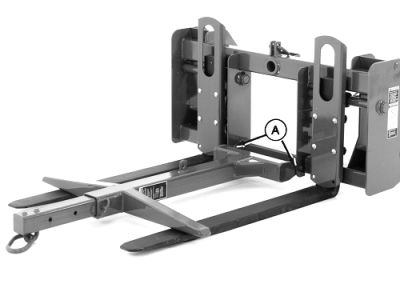

A-Pins and Spring Locking Pins

W03307
