Approved Tractors-721 Loader

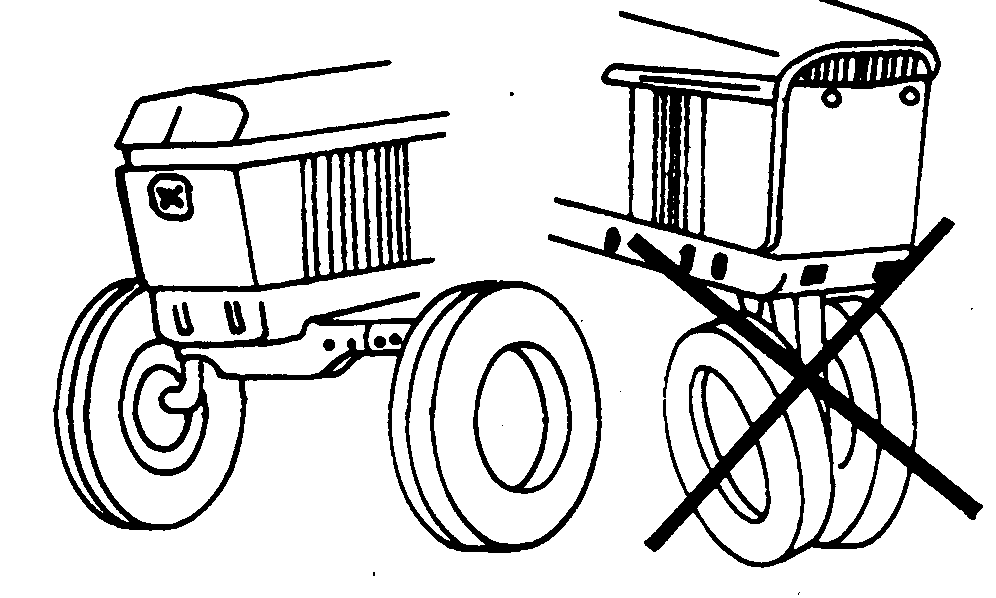

For better stability, use a tractor with adjustable front axle. DO NOT use this loader on a tractor with Roll-O-Matic front end, single or double front wheels. |
|
CAUTION:
To help prevent personal injury or death caused by tractor rollover, be sure tractor is equipped with rollover protective structure (ROPS) and approved seat belt.
| Utility Tractor Model Series | |||
|---|---|---|---|
| 55 | 50 | 40 | 30 |
| 2955 | 2950 | 2840 | 3130 |
| 3055 | 2940 | 3130 HFWD | |
| 3140 | |||
WX,720,TR,2 -19-06FEB95-1/2 |
| Row Crop Tractor Model Series | ||||||
|---|---|---|---|---|---|---|
| 7000 | 6000 | 55 | 50 | 40 | 30 | 20 |
| 7200 | 6600a | 4055 | 4050 | 4040 | 4030 | 2520 |
| 7210 | 6800a | 4255 | 4250 | 4040 HFWD | 4030 HFWD | 3020 |
| 7220 | 6605 | 4240 | 4230 | 3020 HFWD | ||
| 7320 | 6615 | 4240 HFWD | 4230 HFWD | 4000 | ||
| 7400 | 6715 | 4440 | 4430 | 4000 HFWD | ||
| 7405 | 4440 HFWD | 4430 HFWD | 4020 | |||
| 7410 | 4020 HFWD | |||||
| 7420 | 4320 | |||||
| 7520 | 4320 HFWD | |||||
| 7600 | ||||||
| 7610 | ||||||
| 7700 | ||||||
| 7710 | ||||||
| HFWD - Hydraulic Front Wheel Drive | ||||||
| aAustralia | ||||||
WX,720,TR,2 -19-06FEB95-2/2 |
