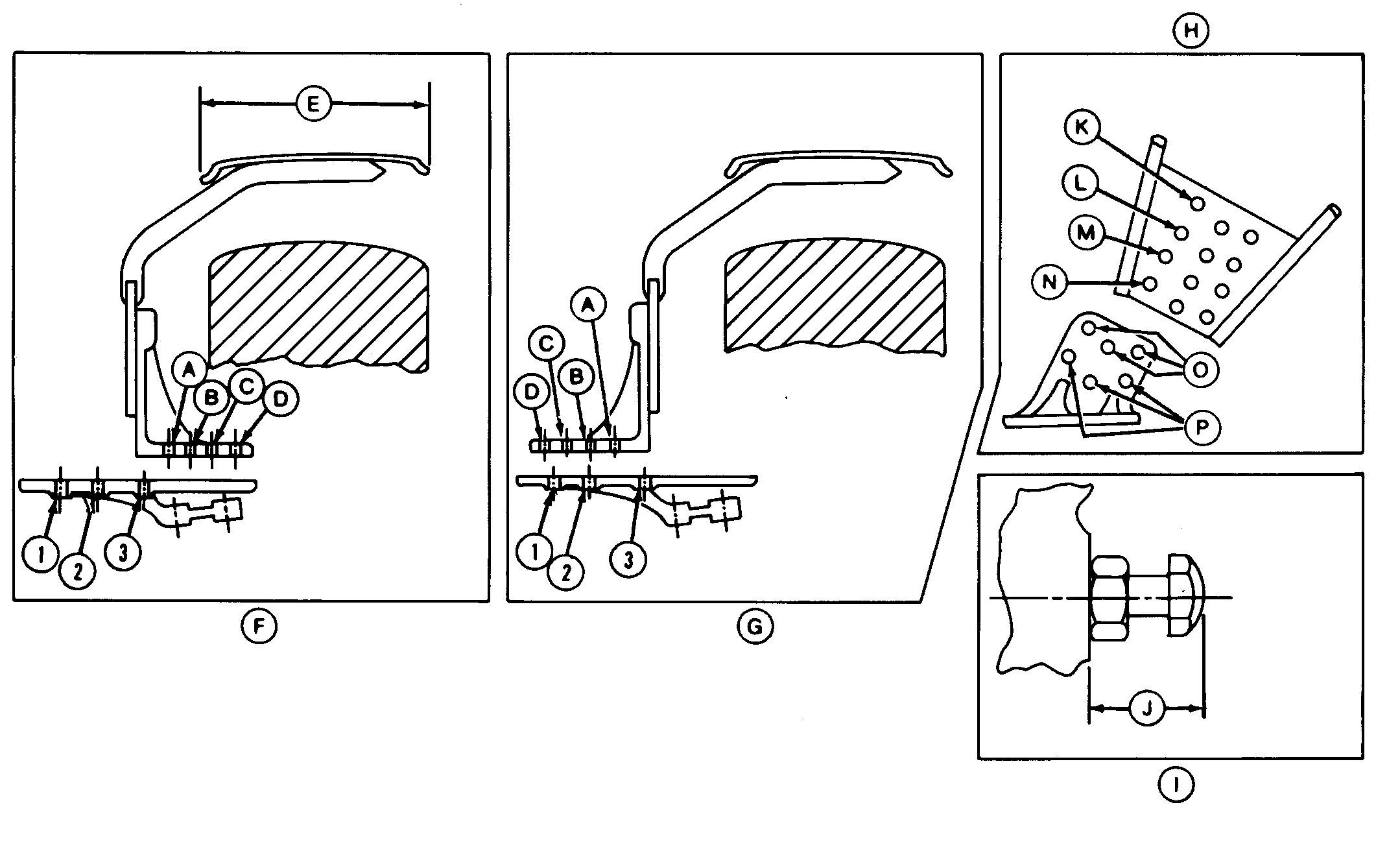

Front Tread and Steering Stop Settings (6000 Series MFWD Tractors-with Fenders)
|
|
|
|
|
|
See your tractor Operator's manual to make tread setting and steering stop adjustments. |
AG,WX20570,144 -19-07AUG98-1/2 |
| Tread Width mm (in.) |
||||
|---|---|---|---|---|
| 1516 (60) | 1616 (64) | 1720 (68) | 1820 (72) | |
| 11.2-24 and 12.4-24 Tires 355 mm (14 in.) Fender Width (E) |
||||
| Steering Stop Length (J) | 64 mm (2.5 in.) | 58 mm (2.3 in.) | 34 mm (1.3 in.) | 18 mm (0.7 in.) |
| Steering Angle | 33° | 36° | 47° | 52° |
| Support Position | F | F | G | G |
| Holes to Use | 2, A, P, L | 3, B, P, L | 1, C, P, L | 2, C, P, L |
| Loader Parking | No | No | Yes | Yes |
| 14.9-24 Tires 440 mm (17.3 in.) Fender Width (E) |
||||
| Steering Stop Length (J) | a | a | a | 46 mm (1.8 in.) |
| Steering Angle | a | a | a | 47° |
| Support Position | a | a | a | G |
| Holes to Use | a | a | a | 2, A, O, L |
| Loader Parking | a | a | a | Yes |
| 12.4-28, 13.6-24, 13.8-24 Tiresb 400 mm (15.8 in.) Fender Width (E) |
||||
| Steering Stop Length (J) | a | 58 mm (2.3 in.) | 50 mm (2.0 in.) | 24 mm (0.9 in.) |
| Steering Angle | a | 36° | 40° | 50° |
| Support Position | a | F | G | G |
| Holes to Use | a | 3, B, P, M | 2, A, P, M | 1, D, P, M |
| Loader Parking | a | No | Yes | Yes |
| aThis tread width is not recommended because of tire/fender contact with the loader when the axle oscillates. | ||||
| b12.4-28, 13.6-24, 13.8-24 Tires with fenders on tractors equipped with TLS (Triple Link Suspension) are not recommended because of tire/fender contact with the loader when the axle oscillates. | ||||
AG,WX20570,144 -19-07AUG98-2/2 |
