Removing Material from a Pile

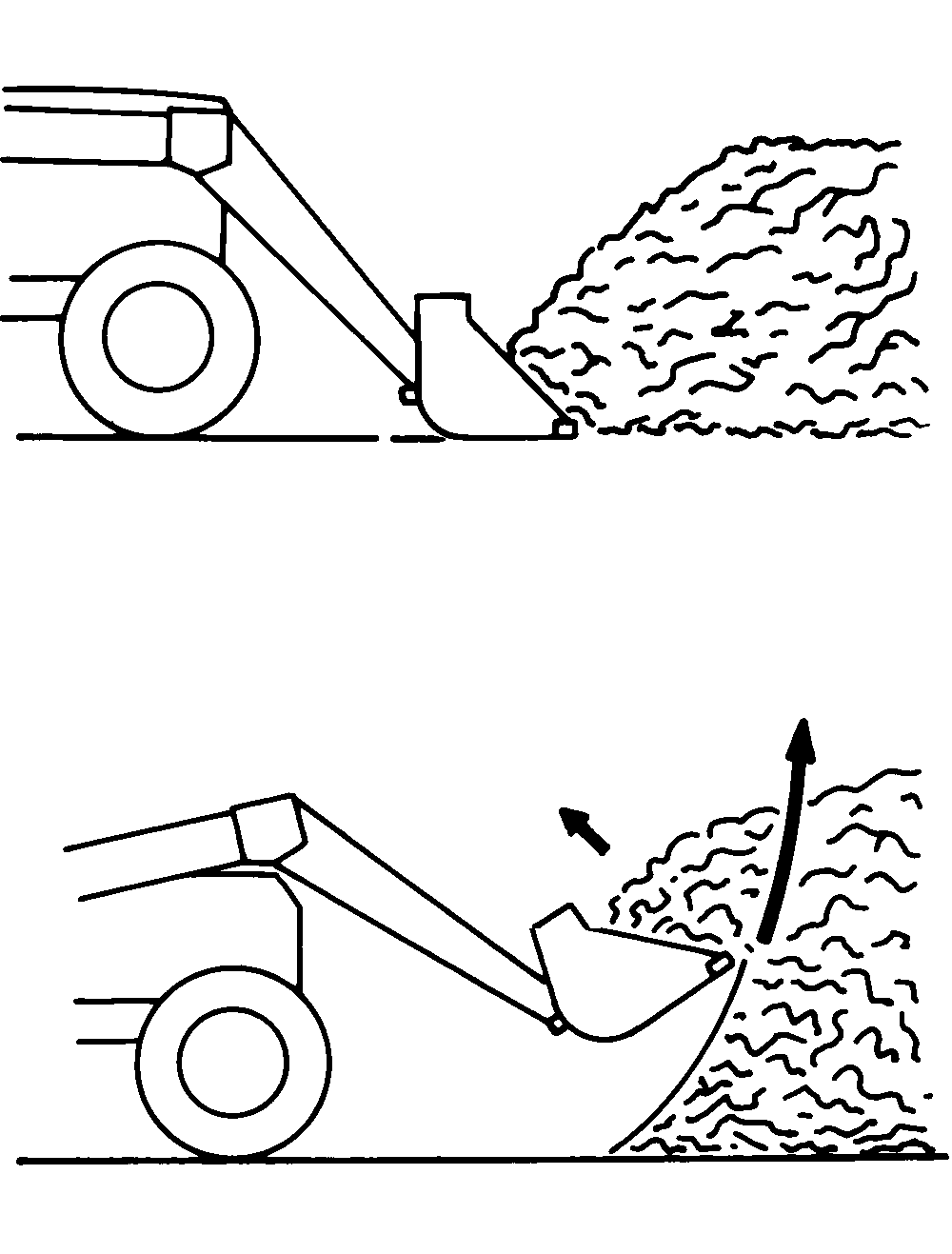

1. Approach and enter pile with bucket level. If the pile is high, remove the top first.

NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. Also, a bucket level indicator attachment is available.

2. Use a combined motion of moving forward slowly, lifting and rolling back to fill the bucket.

NOTE: Overfilling the bucket in heavy or packed material may cause the loader to stall. If loader stalls, back up or take less material.

W01783

OUMX005,0001573 -19-09DEC02-1/1
