Attaching Loader

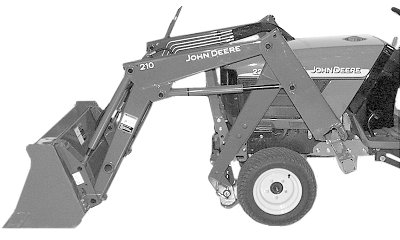

1. Drive tractor slowly, straight into loader.

2. Align masts with rear frames.

3. Engage tractor parking brake and/or place transmission in "Park".

4. Shut off tractor engine and remove key.

W05569

OUO6077,00015C4 -19-27NOV02-1/7

causym CAUTION: To avoid injury from escaping hydraulic oil under pressure, relieve pressure in the system before connecting hydraulic oil lines.

5. Move multi-function control lever back and forth and side-to-side several times to relieve hydraulic system pressure.

X9811

OUO6077,00015C4 -19-27NOV02-2/7

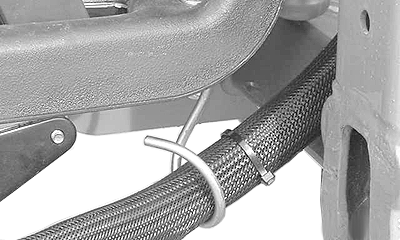

6. Route hydraulic hoses through guide as shown.

W05762

OUO6077,00015C4 -19-27NOV02-3/7

7. Connect colored couplers on hoses matching numbers and/or colors on decal by coupler plate.

Key Dust Cap Color Hydraulic Function/Coupler Port
A Yellow Bucket Cylinder-Rod End (Port 1)
B Silver Bucket Cylinder-Head End (Port 2)
C Green Lift Cylinder-Head End (Port 4)
D Black Lift Cylinder-Rod End (Port 3)


W05559

Right-Hand Side

OUO6077,00015C4 -19-27NOV02-4/7

NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line when doing the following procedures.

8. Slowly retract lift cylinders. Masts will lower into mounting frames.

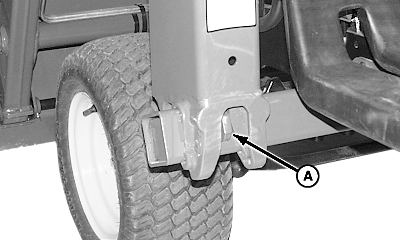

9. Be sure notches in bottom of masts align with tab (A) on each mounting frame.


A-Tab

W05572

Left-Hand Side Shown

OUO6077,00015C4 -19-27NOV02-5/7

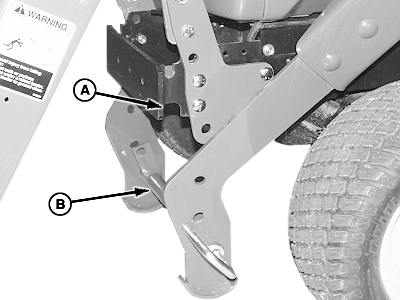

10. Fully retract lift cylinders raising front wheels slightly off ground. Latch bar (B) will raise into slot (A) in front weight bracket.

11. Engage tractor parking brake and/or place transmission in "Park".

12. Shut off tractor engine and remove key.


A-Slot
B-Latch Bar

W05573

OUO6077,00015C4 -19-27NOV02-6/7

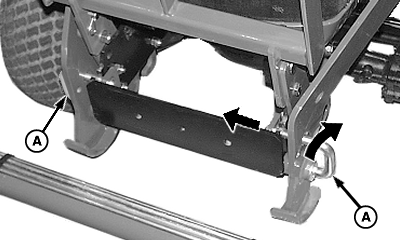

13. Pull back on lock handles (A) and turn into locking position, as shown.

IMPORTANT: To help prevent damage to loader and/or tractor, be sure latch bar is fully engaged. This holds front of loader onto tractor.

14. Check to be sure latch bar and lock handles are "FULLY" engaged.

15. Start tractor engine.

16. Extend lift cylinders to lower tractor to ground.

17. Add appropriate ballast. (See Preparing the Tractor section).

W05574


A-Lock Handles

OUO6077,00015C4 -19-27NOV02-7/7
