Preparing to Attach Loader

causym CAUTION: To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section. Be sure to attach ballast box before attempting to attach loader.

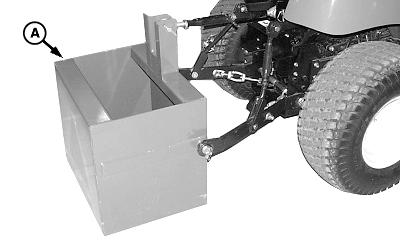

1. Attach ballast box (A) and make sure tractor is prepared for loader operation. (See Preparing the Tractor section.)


A-Ballast Box

W05554

OUO6077,00015C5 -19-25JUL02-1/3

2. Check loader for any damaged or missing parts.

3. Be sure all hydraulic fittings on loader and tractor are free of dirt.

W05570

OUO6077,00015C5 -19-25JUL02-2/3

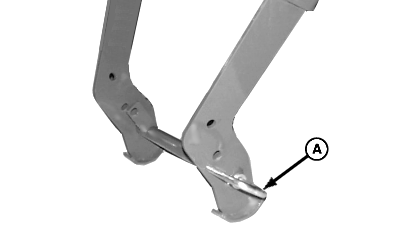

4. Loader latch locks (A) should be unlatched and in forward position as shown.


A-Latch Locks

W05571

OUO6077,00015C5 -19-25JUL02-3/3
