Locking Out Multi-Function Control Lever
Multi-function control lock lever (C) allows operator to control movement needed for a particular operation or situation.
-
To allow movement in all directions;
Move lock lever (C) to left position as shown on decal (B).
-
To prevent movement in any direction;
Move lock lever (C) to right position as shown on decal (B).

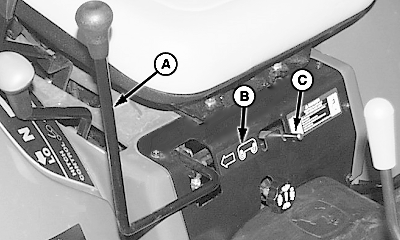

A-Multi-Function Control Lever
B-Decal
C-Lock Lever
|
