Leveling in Reverse

IMPORTANT: Back blading with the bucket positioned greater than 45° may damage the bucket cutting edge and/or loader linkage.

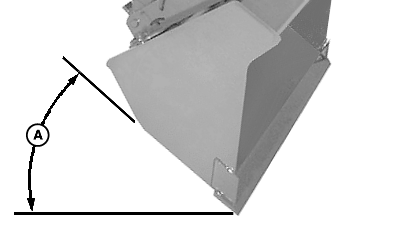

Position bucket between 30° and 45° from horizontal (A) and reverse slowly.

When possible, use "FLOAT" to reduce down pressure on bucket.

A-Bucket Position

OUO6077,00015E8 -19-31JUL02-1/1
