746 Mechanical Self-Leveling Loader Specifications on 7820 Tractor1

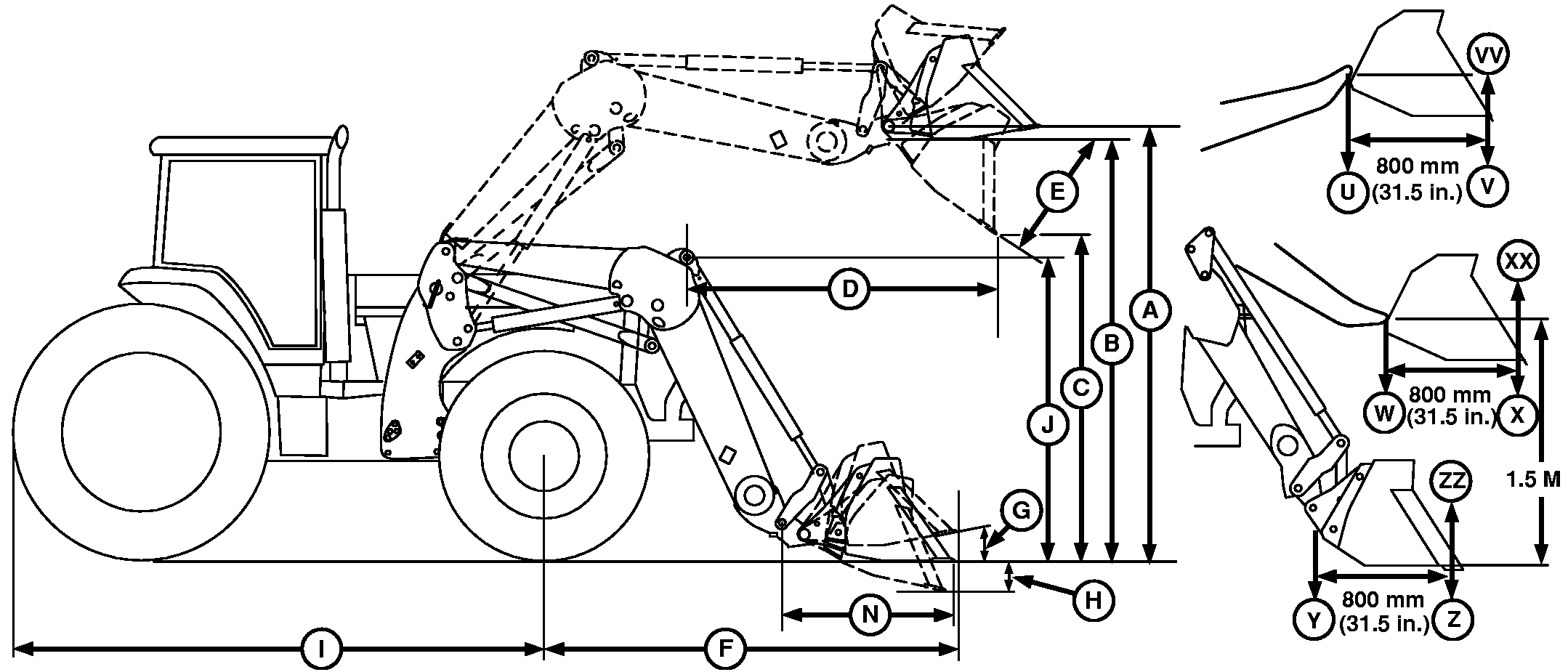

W05885

1(Specifications and design subject to change without notice.)

OUO6077,0001679 -19-11FEB03-1/3

Tractor Model 7820
Front Tires 380/85R34
Rear Tires 480/80R46
Wheelbase (WB) 2860 mm (112.6 in.)
Materials Bucket
Width 2450 mm (85 in.)
Length 967 mm (38 in.)
Mass 352 kg (776 lb)
Hydraulic System
Rated Flow 96 L/min (25.4 gpm)
Maximum Pressure 19500 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time 5.0
Loader Lower Time 5.5
Bucket Dump Time 3.5
Bucket Rollback Time 4.0
Lift Height (Maximum)
To Pivot Pin (A) 4650 mm (183.0 in.)
Clearance
Bucket Level (B) 4465 mm (175.8 in.)
Bucket Dumped (C) 3820 mm (150.4 in.)
Overall Length (I)+(F) 5650 mm (222.4 in.)
Digging Depth (H) 150 mm (5.9 in.)
Reach
At Maximum Lift Height (D) 820 mm (32 in.)
Bucket on Ground (F) 2790 mm (109.8 in.)
Angles (Maximum)
Dump (E) 58.9°
Dump at Ground 103°
Rollback (G) 42°
Overall Height
In Carry Position (J) 2370 mm (93.3 in.)
Lift Capacity
To Maximum Height at Pivot Point (U) 2065 kg (4553 lb)
To Maximum Height (V) 2240 kg (4939 lb)
To 1.5 m (59 in.) at Pivot Point (W) 3420 kg (7541 lb)
To 1.5 m (59 in.) (X) 3280 kg (7232 lb)
Breakout Force
At Pivot Point (Y) 47 000 N (10 567 lb force)
800 mm (31.5 in.) Forward of Pivot Point (Z) 43 100 N (9690 lb force)
Bucket Rollback Force
At Maximum Height (VV) 35 700 N (8026 lb force)
At 1.5 m (59 in.) Lift Height (XX) 45 100 N (10 139 lb force)
At Ground Level Line (ZZ) 45 500 N (10 229 lb force)



OUO6077,0001679 -19-11FEB03-2/3

NOTE: Capacities are shown measured to bucket bottom midpoint. Objects such as round bales or bins on a forklift, move the weight out from this point, altering lift capacity.

Dimensions are in compliance with ASAE Standard S301.3.
