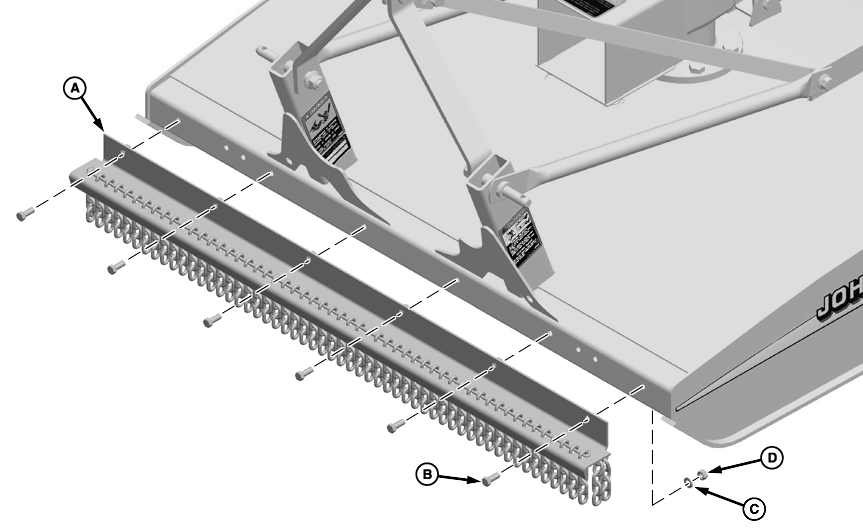

A-Shield Assembly

B-Cap Screw, M12 x 30
MX5-(5 used)
MX6-(7 used)
MX7-(9 used)

C-Washer, 13 x 24 x 2.5 mm
MX5-(5 used)
MX6-(7 used)
MX7-(9 used)

D-Lock Nut, M12
MX5-(5 used)
MX6-(7 used)
MX7-(9 used)

Tighten all mounting hardware AFTER shield assembly is installed.

AG,OUO1078,371 -19-13JUN06-1/1
