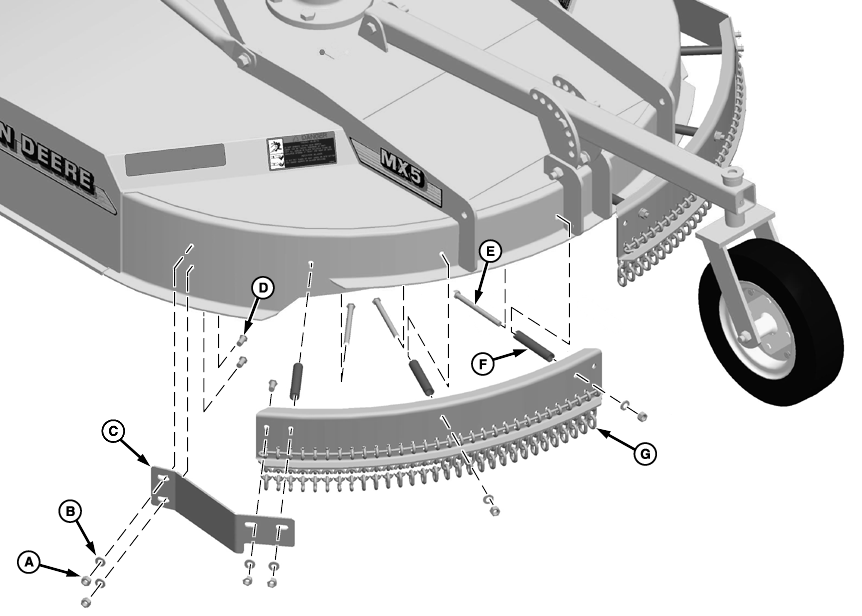

A-Lock Nut, M12 (6 used) B-Washer, 13 x 24 x 2.5 mm (6 used)
C-Support D-Cap Screw, M12 x 25 (3 used)
E-Cap Screw, M12 x 150 (3 used)
F-Spacer (3 used) G-Shield Assembly
Tighten all mounting hardware AFTER all shields have been installed.
AG,OUO1078,377 -19-13JUN06-1/1
