Assembling Slip Clutch

Assemble slip clutch in reverse order of disassembly using the following instructions:

  • Install belleville spring (C) with concave side facing away from yoke end.

    IMPORTANT: To avoid driveline damage, DO NOT overtighten cap screws and lock nuts. A gap must be left between clutch plate (B) and belleville spring (C).

  • Tighten cap screws and lock nuts (D) leaving a gap (A) between clutch plate (B) and spring (C) according to specifications.

Specification

MX5 and MX6 Clutch Plate-to-Spring -Gap 4 mm (0.157 in.)
MX7 Clutch Plate-to-Spring -Gap 3.5 mm (0.138 in.)


A-Gap
B-Clutch Plate
C-Belleville Spring
D-Cap Screw and Lock Nut (6 used)

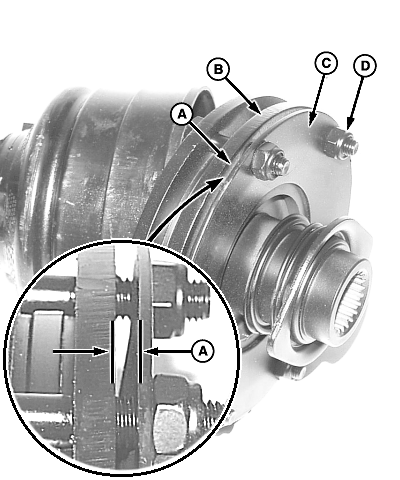

W03710

MX5 and MX6 Clutch

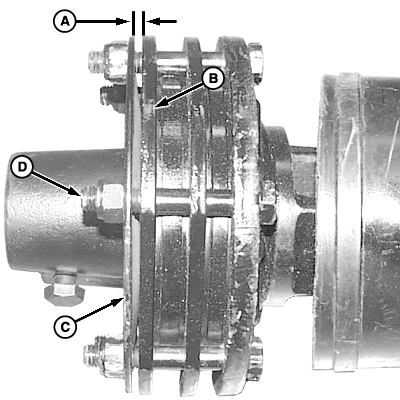

W07519

MX7 Clutch

OUO6038,0001968 -19-18AUG05-1/1
