Removing Front Weights

IMPORTANT: To prevent interference with loader, remove all weights.

NOTE: Front weight bracket "extensions" are NOT compatible with the loader.

Remove all front weights.

IMPORTANT: Front weight bracket MUST NOT be bent or damaged in any way. Use the following procedure to inspect bracket. Replace if necessary.

The weight bracket is required for installation of loader and must remain on tractor.

1. Check underside of ribs and outside of weight bracket at locations (A). Surfaces must be smooth and level from side-to-side.

2. Check top surface (B). Entire surface must be smooth and level side-to-side and free of weld bumps, nicks or bends.

3. Grind or file any projections.

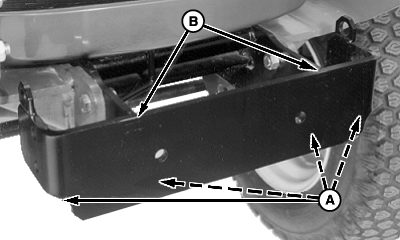

W02689

4000 Series Tractor

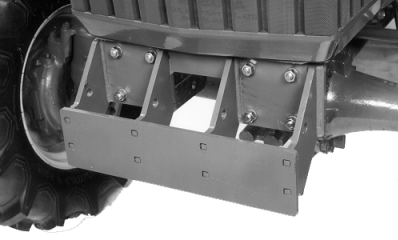

W02972

870 Tractor


A-Underside of Ribs
B-Top Surface

OUMX005,00017F6 -19-19FEB04-1/1
