Replacing Orifice

IMPORTANT: The orifice must be in place for more efficient use of tractor hydraulics. The lift circuit orifice slows the lowering and improves control of lift arms.

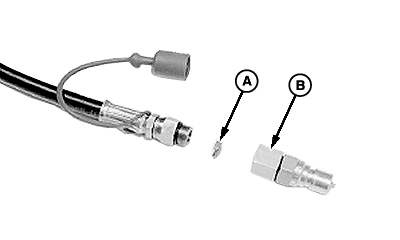

Orifice (A), is in the head-end lift cylinder fitting (GREEN cap).

Flat face of orifice (A) must be against inside of adapter fitting (B).

A-Orifice
B-Adapter Fitting

OUMX005,00017FA -19-23FEB04-1/1
