Removing Material from a Pile

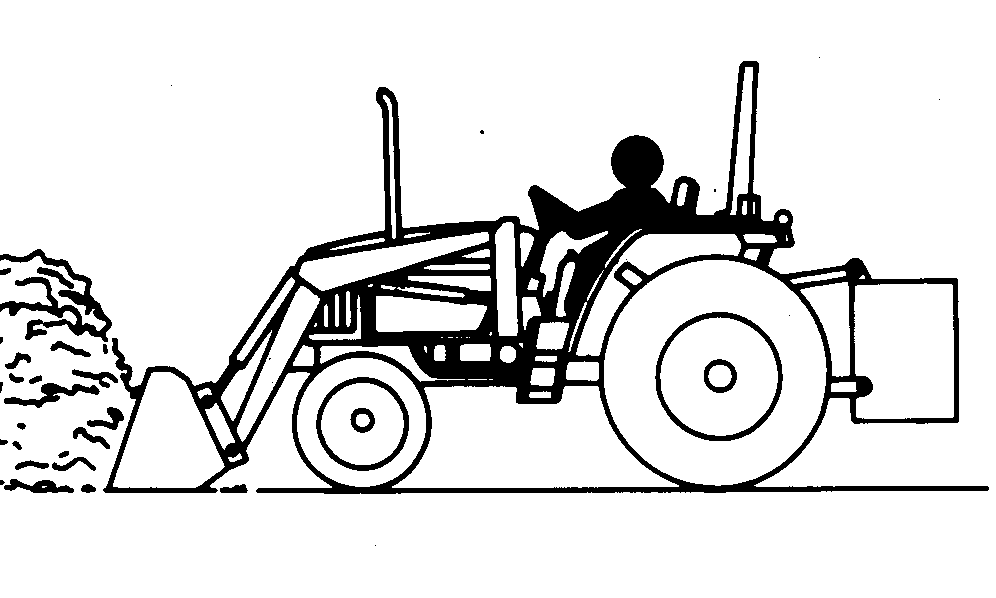

Approach and enter pile with a level bucket. If the pile is high, remove the top first.

W01143

OUO1078,0000082 -19-11JAN01-1/2

NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. Also, a bucket level indicator attachment is available.

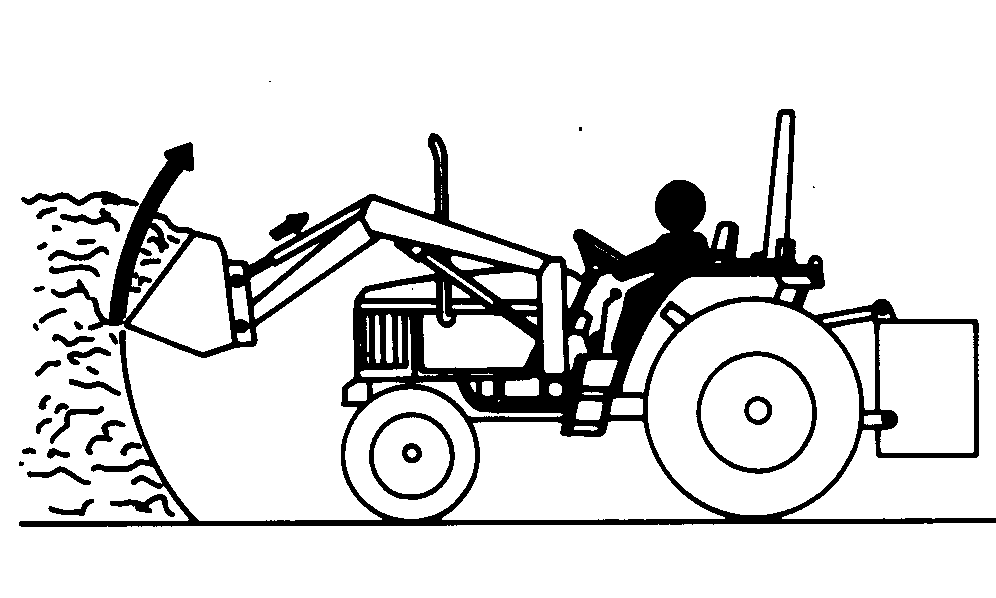

Move forward slowly, lifting the loader and rolling back bucket.

NOTE: Overfilling the bucket in heavy or packed material, may cause the loader to stall. If loader stalls, back tractor up or take less material.

W01142

OUO1078,0000082 -19-11JAN01-2/2
