Identifying Hose Connections-410 Loader

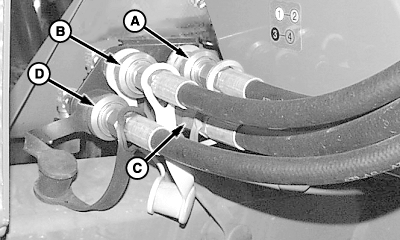

Identify hoses by installing color-coded dust covers on end of hoses.

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key Port Cap Color Hydraulic Function
A 2 Silver Bucket Cylinder-Head End
B 1 Yellow Bucket Cylinder-Rod End
C 4 Green Lift Cylinder-Head End
D 3 Black Lift Cylinder-Rod End


W05997
W05998
