Removing Ballast Box

causym CAUTION: To prevent personal injury from tractor instability, remove ballast box from hitch when loader is removed.

To prevent personal injury caused by unexpected movement:

1. Park machine on a level surface.
2. Engage tractor parking brake and/or place transmission in "Park".
3. Disengage PTO.
4. Shut off tractor engine and remove key.

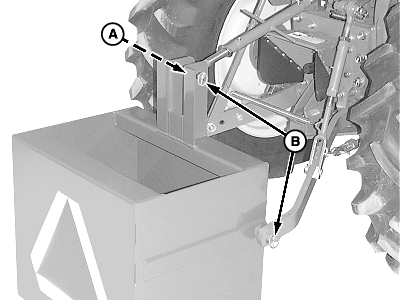

Ballast Box with Three-Point Hitch

1. Slowly push hitch control lever to lower ballast box to the ground.

2. Remove quick-lock pins (B) from hitch pins and install in storage position on tractor draft links.

3. Remove and lower tractor draft links from hitch pins.

4. Remove quick-lock pin (B) from center link (A). Position tractor center link in transport location. Reinstall center link pin/hardware.

5. Carefully drive tractor away.

W05958


A-Center Link
B-Quick-Lock Pins (3 used)

OUO6038,00018A1 -19-14MAR03-1/2

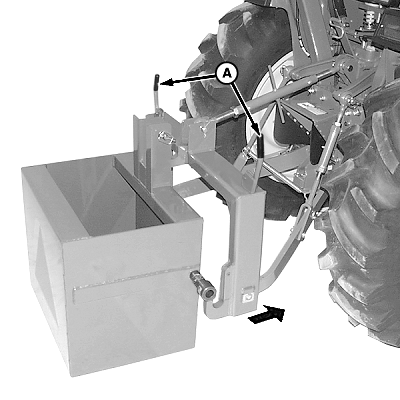

Ballast Box with Quick Coupler

1. Slowly push hitch control lever to lower ballast box close to the ground.

2. Raise both latch control levers (A) on quick coupler.

3. Start tractor engine.

4. Lower ballast box to the ground. Continue lowering quick coupler until hooks clear ballast box hitch pins.

5. Carefully drive tractor away.


A-Latch Control Levers

W05201

OUO6038,00018A1 -19-14MAR03-2/2
