Leveling Bucket with Bucket Level Indicator (If Equipped)

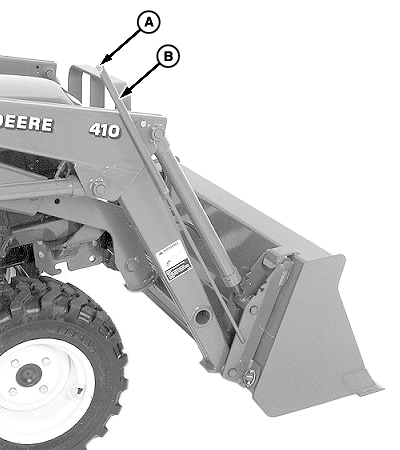

Bucket Level Indicator allows you to see when the bucket is level. Bucket should be level when top of rod (A) is flush with tube (B).


A-Level Indicator Rod
B-Tube

W06010

OUO6038,00018A7 -19-14MAR03-1/1
