Accessing Front of Tractor-410 Loader (4000 Series Tractors)

Hood guard on 410 Loader does not interfere with access to the 4100 or 4110 Tractor engine compartment for servicing.

NOTE: Latch plate retainer interferes with tractor front grille when removing battery. Grille removal is not necessary to check battery fluid level or boost.

Remove latch plate retainer and tractor front grille to remove battery.

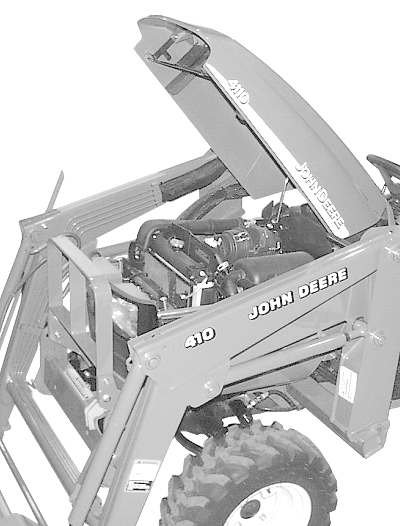

W05991

410 Shown on 4110 Tractor

OUO6038,00018B3 -19-14MAR03-1/3

When reinstalling latch plate retainer, make sure all parts are installed correctly, as shown.

1. Install latch plate retainer (B) over latch plate and tractor frame.

410 Loader on 4100 and 4110 Tractor only; Insert spacer (A) between retainer and inside surface of tractor frame.


NOTE: It may be necessary to push rearward on front latch plate when inserting headed pin (C).

2. Attach latch plate retainer and spacer to tractor frame using 16 x 45 mm (0.625 x 1.77 in.) headed pin (C) and spring locking pin (D).

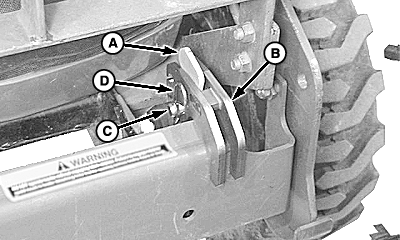

W05992

410 Loader on 4100 Tractor


A-Spacer (4100 Tractor only)
B-Latch Plate Retainer
C-Pin, 16 x 45 mm (0.625 x 1.77 in.)
D-Spring Locking Pin

OUO6038,00018B3 -19-14MAR03-2/3

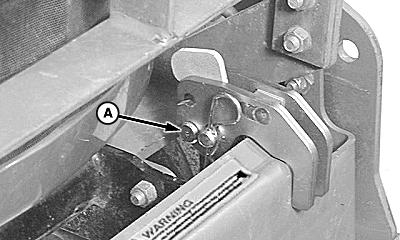

3. Insert 12 x 50 mm (0.5 x 2 in.) pin (A) through middle holes of latch retainer and install spring locking pin.


A-Pin, 12 x 50 mm (0.5 x 2 in.)

W05993

OUO6038,00018B3 -19-14MAR03-3/3
