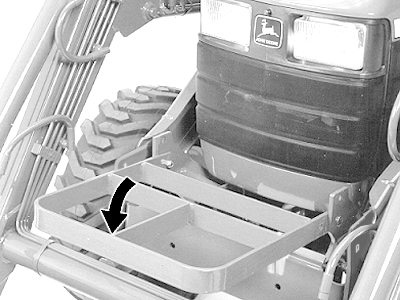

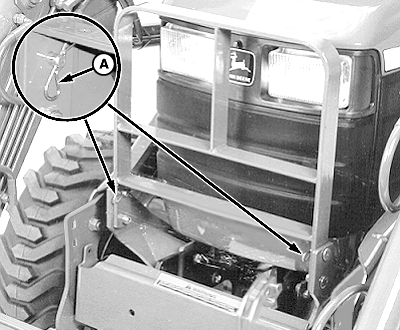

Accessing Front of Tractor-420 Loader (4000 Series Tractors)1. Remove spring locking pins (A) from pins in each side of the hood guard.2. Remove drilled pins and swing hood guard down for access to front of tractor.
|
|
OUO6038,00018B4 -19-14MAR03-1/1 |
