Attach Loader to Tractor

IMPORTANT: Mounting frames are loose. After attaching loader to tractor, make sure latch plate is engaged with tractor frame/weight bracket and mounting frame hardware is tightened to specified torque.

1. Attach loader. (See Attaching Loader section.)

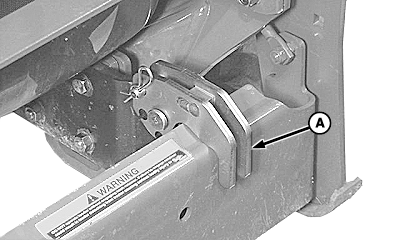

2. Make sure latch plate is engaged with tractor frame/weight bracket and latch plate retainer (A) is down. (If latch plate is not properly engaged, see CHECKING AND ADJUSTING LATCH PLATE AND LOCKING LEVER in Service section.)

IMPORTANT: Operating loader with loose mounting frames will cause damage. Tightening mounting frame hardware to specified torque at initial installation is critical.

Hardware torque MUST be checked after the first 10 hours and every 50 hours thereafter.

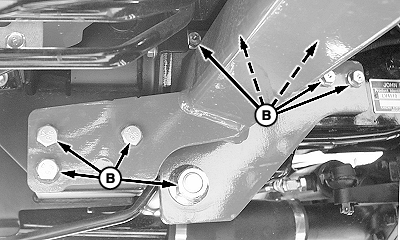

3. Tighten all mounting frame hardware (B). (See EVERY 50 HOURS in Lubrication and Maintenance section.)

W05979
W06045

410/4110 Shown


A-Latch Plate Retainer
B-Mounting Frame Hardware

OUO6038,0001927 -19-20MAY05-1/2

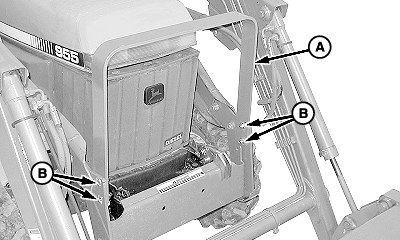

4. 870, 855, and 955 Tractors; Install hood guard (A) using four M12 x 35 round-head bolts and flange nuts (B).


A-Hood Guard
B-Round-Head Bolts and Flange Nuts, M12 x 35
