Every 50 Hours

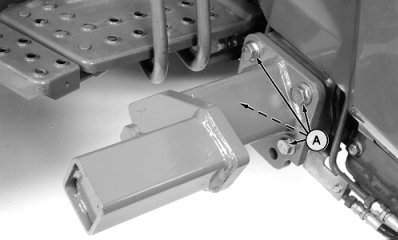

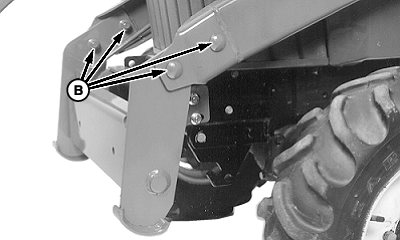

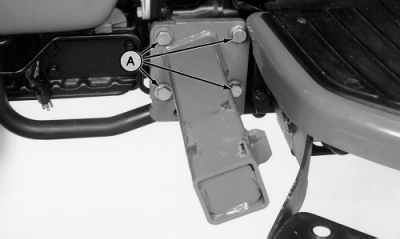

Tighten Mounting Frame and Latch Frame Hardware

Tighten M16 hardware (A and B) to specifications.

Specification

Hardware -Torque 350 N·m (255 lb-ft)


A-Hardware
B-Hardware

W02963

990, 970, and 1070 Tractor

W02990

4000 Series Tractors

W02943

OUMX005,0001392 -19-23MAY05-1/3

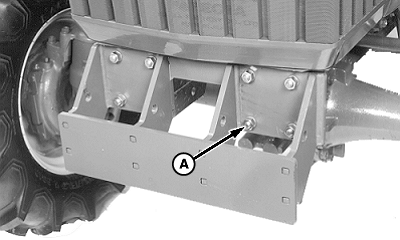

Check Front Weight Bracket Hardware (430 Loader on 990, 970, and 1070 Tractor)

Tighten M12 hardware (A) to specifications.

Specification

Hardware -Torque 140 N·m (105 lb-ft)


A-Hardware

W02971

OUMX005,0001392 -19-23MAY05-2/3

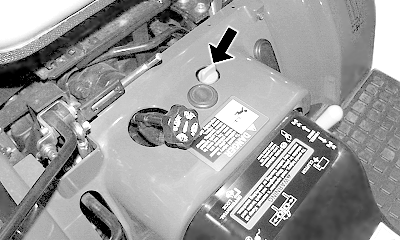

Checking Transmission/Hydraulic Oil Level

Cycle all cylinders three or four times.

Retract bucket cylinders completely and lower loader to ground.

Check oil level. (See your tractor Operator's Manual).

W01161

990, 970, and 1070 Tractor

W05990

4000 Series Tractor

OUMX005,0001392 -19-23MAY05-3/3
