Removing Loader

NOTE: 430 on 970 and 1070 Tractor; Latch (A) is located on right-hand mast. Loader for 990 and 4000 series tractor shown.

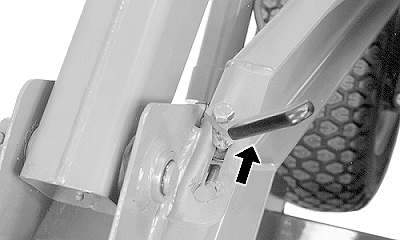

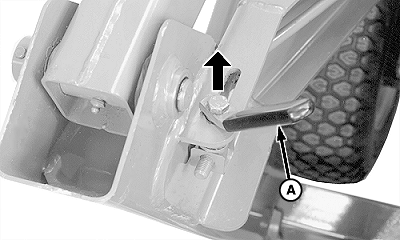

1. Lift up on latch (A) and push forward all the way into notch.

2. Extend lift cylinders. Masts will lift out of rear frames.

3. Raise masts high enough to clear front tires.

4. Engage tractor parking brake and/or place transmission in "Park".

5. Shut off tractor engine and remove key.


A-Latch

W05954
W05955
W06040

OUMX005,00017FE -19-23MAY05-1/4

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system before disconnecting hydraulic hoses.

6. Move control lever(s) back and forth and side-to-side several times to relieve system pressure. (See your tractor Operator's Manual.)

X9811

OUMX005,00017FE -19-23MAY05-2/4

7. Disconnect hoses at couplers and install dust plugs and caps.

W02959

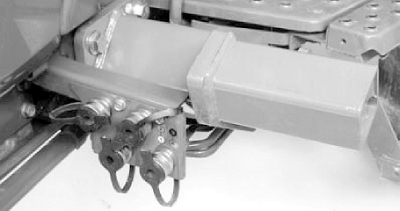

970 and 1070 Tractor (Left-Hand Side)

W04302

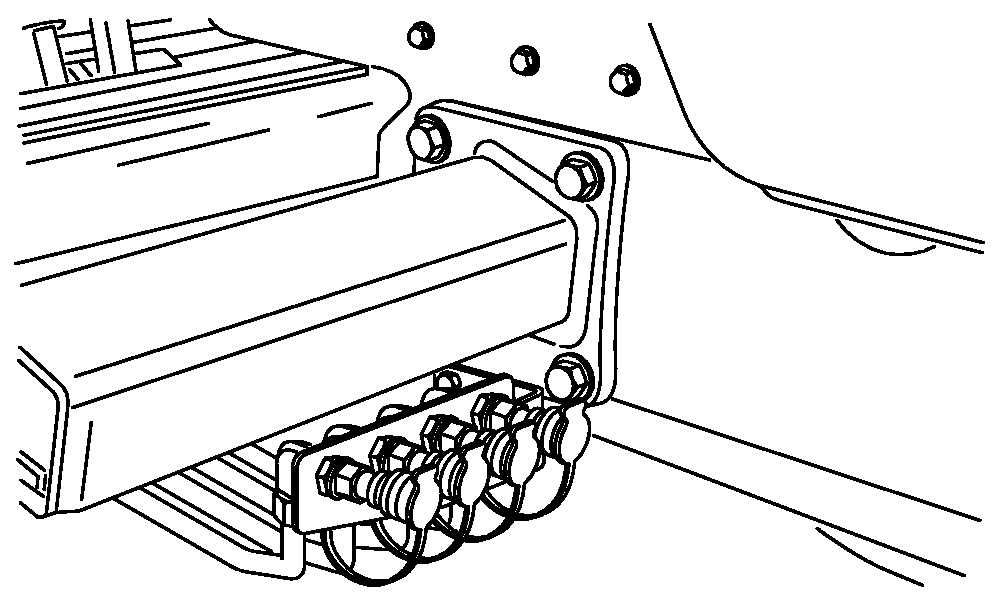

4300/4310 and 4400/4410 Tractor

W06151

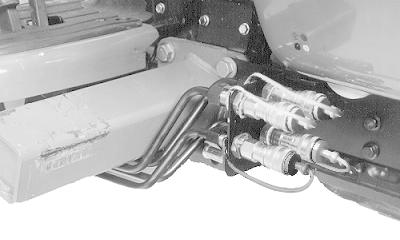

4500/4510, 4600/4610 and 4700/4710 Tractor

OUMX005,00017FE -19-23MAY05-3/4

IMPORTANT: To avoid hose damage, be sure hoses do not catch on tractor when moving away from loader.

8. Store hoses on lift cylinder, DO NOT lay them on the ground.

9. Start tractor engine.

10. Disengage tractor parking brake and/or place transmission in reverse and slowly move away from loader.

11. Remove ballast box. (See REMOVING BALLAST BOX in this section.)
